STANDARD SCOPE OF SUPPLY

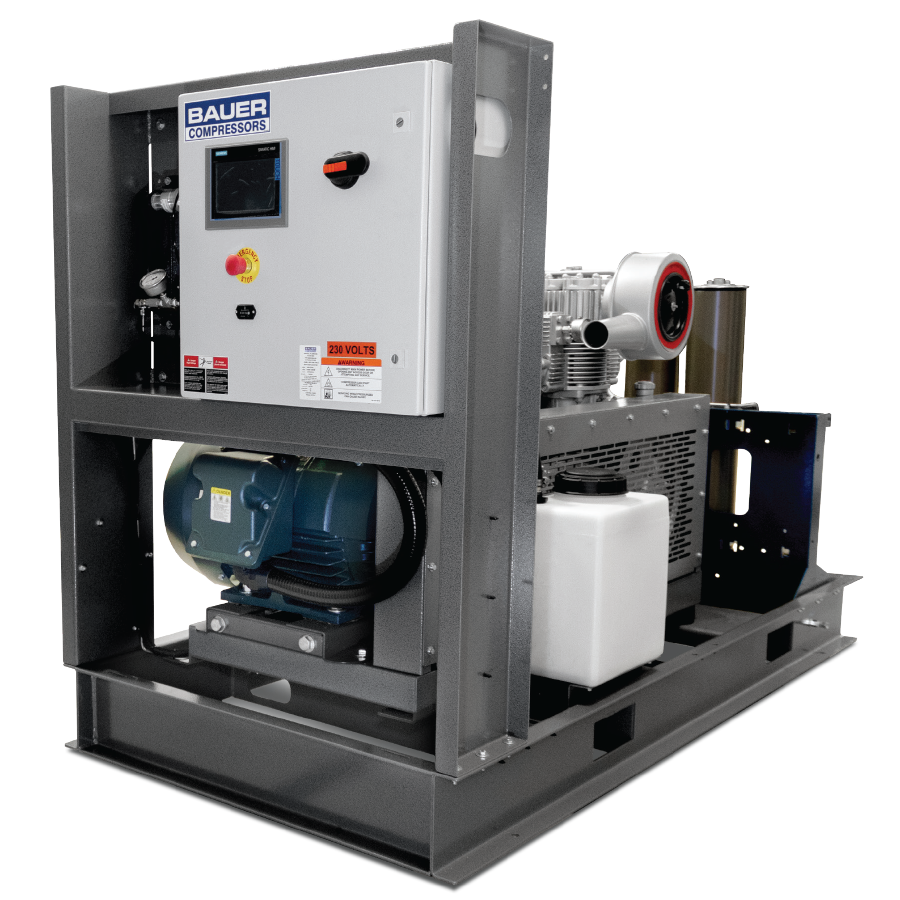

- Multi-stage, air cooled, pressure lubricated, continuous-duty rated reciprocating compressor
- Electric TEFC motor with v-belt drive, belt guard and belt tensioning device
- Automatic condensate drain with condensate collector
- Collector includes switch for high condensate level
- Automatic operation with PLC controller
- Includes operator keypad and text display for operation, maintenance and troubleshooting
- NEMA 4 rated electrical enclosure with UL listed control panel
- Fused control voltage transformer
- Hour meter and temperature switch
- Pressure sensors for oil pressure and final pressure
- Emergency stop push button and audible alarm
- Ambient temperature range 40˚ F to 113˚ F
- 24 month warranty
- Soft starter
- Circuit breaker disconnect
AVAILABLE ACCESSORIES
- Enclosure
- BAUER air purification system with SECURUS
60-100 HP MODELS
- Soft starter
- Circuit breaker disconnect
TECHNICAL DATA
Model | FAD1 | Number of Stages | Motor | Drive | Purification System | ||
---|---|---|---|---|---|---|---|
scfm | l/min | HP | kW | ||||
5000 PSIG (345 BAR) | |||||||
220 | 25-33 | 708-935 | 4 | 25-30 | 18.5-22 | E3 | P10 SECURUS |
230 | 48 | 1360 | 4 | 40 | 30 | E3 | P12 SECURUS |
250 | 63 | 1785 | 4 | 60 | 45 | E3 | P14 SECURUS |
280 | 86-120 | 2435-3400 | 4 | 75-100 | 55-75 | E3 | P14 SECURUS |
6000 (414 bar) | |||||||
22.42 | 27-31 | 765-880 | 4 | 25-30 | 18.5-22 | E3 | P10 SECURUS |
25.93) | 63 | 1785 | 5 | 60 | 45 | E3 | Dual P10 SECURUS |
25.183) | 80 | 2266 | 5 | 75 | 56 | E3 | Dual P10 SECURUS |
1) Compressor capacity (FAD) is referenced to standard inlet conditions and 80% of the compressor's maximum working pressure. Tolerance +/- 5%.
2) 3-phase motors only, 60 Hz standard. 50 Hz available on request.
3) Maximum working pressure is 7000 psig. Information valid for 6000 psig only.
E3 = 230 - 460 / 3 / 60
Other voltages and frequencies available upon request.
Engine driven models available.
