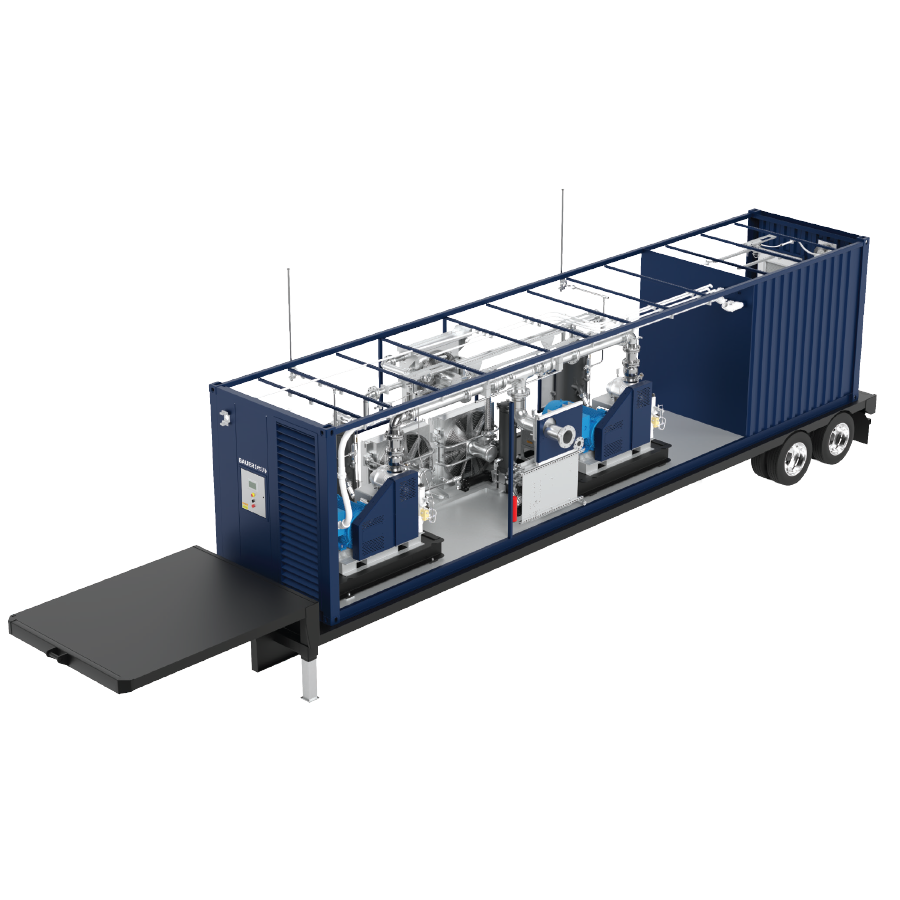

BAUER GRU®28 XL DUPLEX MOBILE PERFORMANCE
| Inlet Pressure | Outlet Pressure | Compressor | System Performance | ||
|---|---|---|---|---|---|
| Actual Used Power | Flow Rate | Combined Flow Rate | |||
| PSIG | PSIG | RPM | HP | SCFM | MMFCD |
| 100-30 | 120 | 3159 | 429.4 | 4014 | 5.8 |
| 20 | 120 | 3380 | 429.4 | 3319 | 4.8 |
| 10 | 120 | 3633 | 429.4 | 2500 | 4.8 |
| 5 | 120 | 3920 | 429.4 | 2125 | 3.1 |
| 1 | 120 | 4000 | 406.0 | 1711 | 2.5 |
| 0 | 120 | 4000 | 398.0 | 1583 | 2.3 |
Note: 1) All performance data for compressed gas inlet (suction conditions) is stated at Standard Conditions: Suction Pressure as Indicated, Gas Temperature of 68⁰ F (20⁰C) and RH of 0% 2) All performance data for compressed gas outlet is stated at ISO 1217 Reference Conditions: Absolute Pressure at 364 ft (111m) elevation = 14.5 PSIG ( 1 Bar), Gas Temperature of 68⁰ F (20⁰C) and RH of 0% 3) All performance data are based on a typical well gas composition based on the following Mol percentages: Methane 97%, Nitrogen 1.0%, Carbon Dioxide 2%
EXAMPLE: PIPELINE BLOWDOWN TIMES (20 mile, 36 inch pipeline)
| Pipeline Diameter | Pipeline Length | Pipeline Starting Pressure | Pipeline Residual Pressure | Draw-down Time | Draw-down Time |
|---|---|---|---|---|---|
| INCHES | MILES | PSIG | PSIG | HOURS | DAYS |
| 36 | 20 | 100 | 30 | 98 | 4d,2h |
| 36 | 20 | 100 | 15 | 130 | 5d,20h |
| 36 | 20 | 100 | 5 | 151 | 6d,7h |
| 36 | 20 | 100 | 0 | 162 | 6d,18h |
