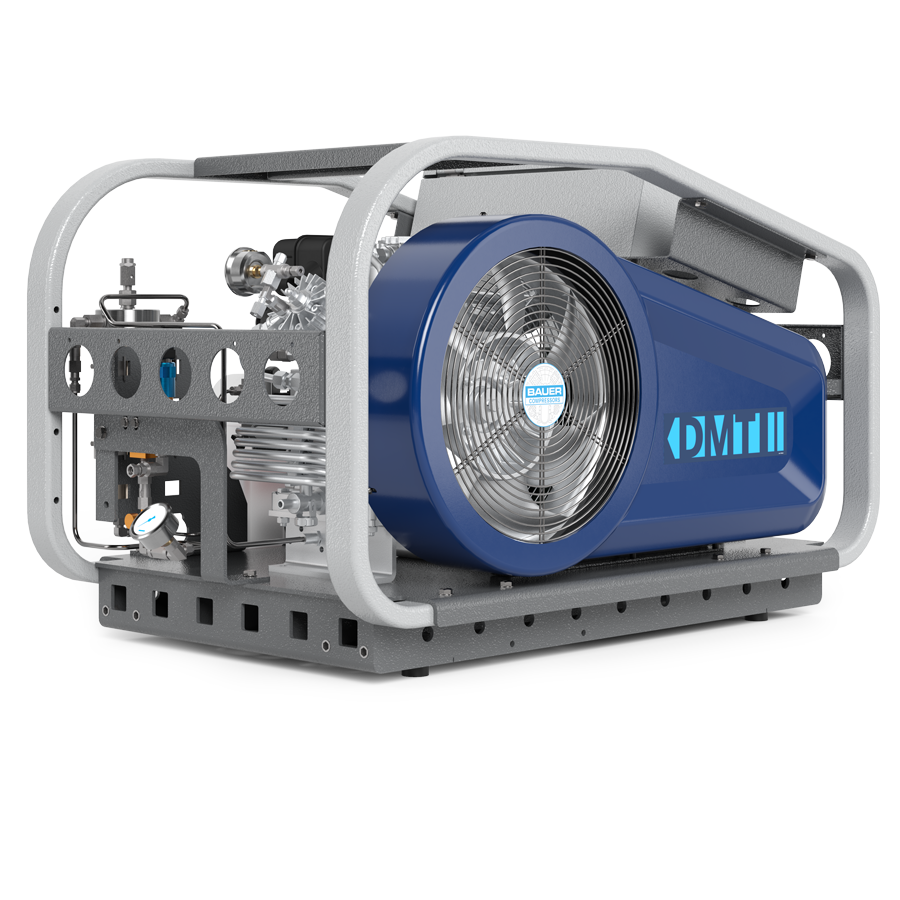

SYSTEM FOOTPRINT
DIMENSIONS L X W X H inches (mm)
- 48” x 32” x 28” (1219mm x 819mm x 711mm)*
WEIGHT pounds (kg)
- 300 - 450 lb (136 - 204 kg)
* Base Model
AVAILABLE ACCESSORIES (Factory Installed)
- B-Timer (P-31)
AVAILABLE ACCESSORIES
(Dealer/Customer Installed)
- Riser Kit
-
Wheel kit
STANDARD SCOPE OF SUPPLY
Available in three sizes 8,10 &13 SCFM charge rate
- Choice of prime mover/drive
- Electric motor, 1-phase or 3-phase
- Gasoline engine (pull start)
- Diesel engine (electric start)
- Inlet filter
- Stainless steel intercoolers and aftercooler
- High temperature switch (except D drive)
- Vibration isolators
- P31 Purification for 5000 PSIG systems
- P41 Purification for 6000 PSIG systems
- Low oil pressure switch (electric drive)
- Motor starter with NEMA 4 enclosure (electric drive units)
- Hourmeter (electric and gasoline drive) or Vibration type (diesel drive)
- Final pressure switch (electric & gasoline drive)
- Visual CO/moisture indicator
- Tubular aluminum frame and stainless steel fitings
- Engine Drive - fresh air intake tube to prefilter
DMT II ELITE (ADD to ABOVE)
- Interstage gauges
- Automatic condensate drain
- Electric start and low oil pressure switch for gasoline and diesel drive units.
TECHNICAL DATA
| Model | Charging Rate1 | Number of Stages | Motor | FAD2 | Purification System | ||
|---|---|---|---|---|---|---|---|
| scfm | l/min | HP | kW | ||||
| 5000 PSIG (345 BAR) | |||||||
| DMTII 08-E1/E3 | 8.4 | 238 | 3 | 7.5 | 5.6 | 7 | P31 |
| DMTII 08-GK | 8.4 | 238 | 3 | 14 | 10.4 | 7 | P31 |
| DMTII 08-DY | 8.4 | 238 | 3 | 8.3 | 6.2 | 7 | P31 |
| 6000 PSIG (414 BAR) | |||||||
| DMTII 10-E1/E3 | 9.7 | 275 | 4 | 7.5 | 5.6 | 8.1 | P41 |
| DMTII 10-GK | 9.7 | 275 | 4 | 14 | 10.4 | 8.1 | P41 |
| DMTII 10-DH | 9.7 | 275 | 4 | 8.3 | 6.2 | 8.1 | P41 |
| DMTII 13-E1/E3 | 13 | 368 | 4 | 10 | 7.5 | 10.8 | P41 |
| DMTII 13-GK | 13 | 368 | 4 | 10 | 10.4 | 10.8 | P41 |
| DMTII 13-DH | 13 | 368 | 4 | 14 | 10.4 | 10.8 | P41 |
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig
2) Compressor capacity referenced to standard inlet conditions
E1= Single phase electric, 230 VAC/60 Hz
E3 = Three-phase electric, 208/230/460 VAC/60 Hz.
Other voltages available on request
GK = Gasoline engine drive, KOHLER
DH = Diesel engine drive, HATZ
Dimensions and weight are approximate and are subject to change
