B-DETECTION PLUS s
AUTOMATIC, CONTINUOUS AND ULTRA-RELIABLE
The control unit enables you to monitor compliance with the values of the NFPA Breathing Air Standards at all times. If limit values are exceeded, the control unit displays a visual warning and shuts down the compressor system before contaminated air can pass into the cylinders being filled.
To ensure continuous flow of air and guarantee correct measurement values, an integrated flow monitor automatically shuts down the compressor if the flow is interrupted or reduced, e.g. caused by piping kinks or blocked filter elements.

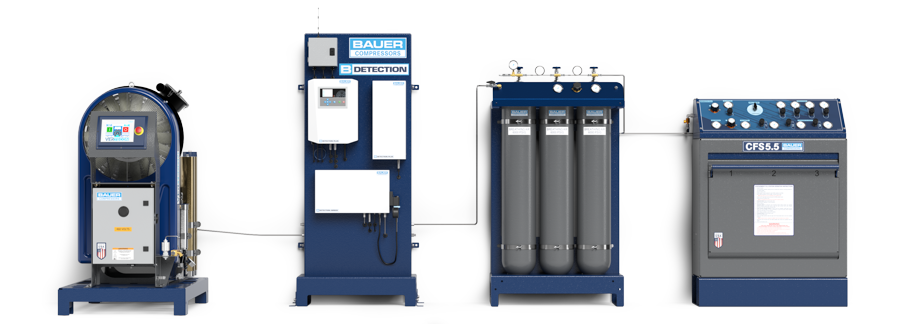

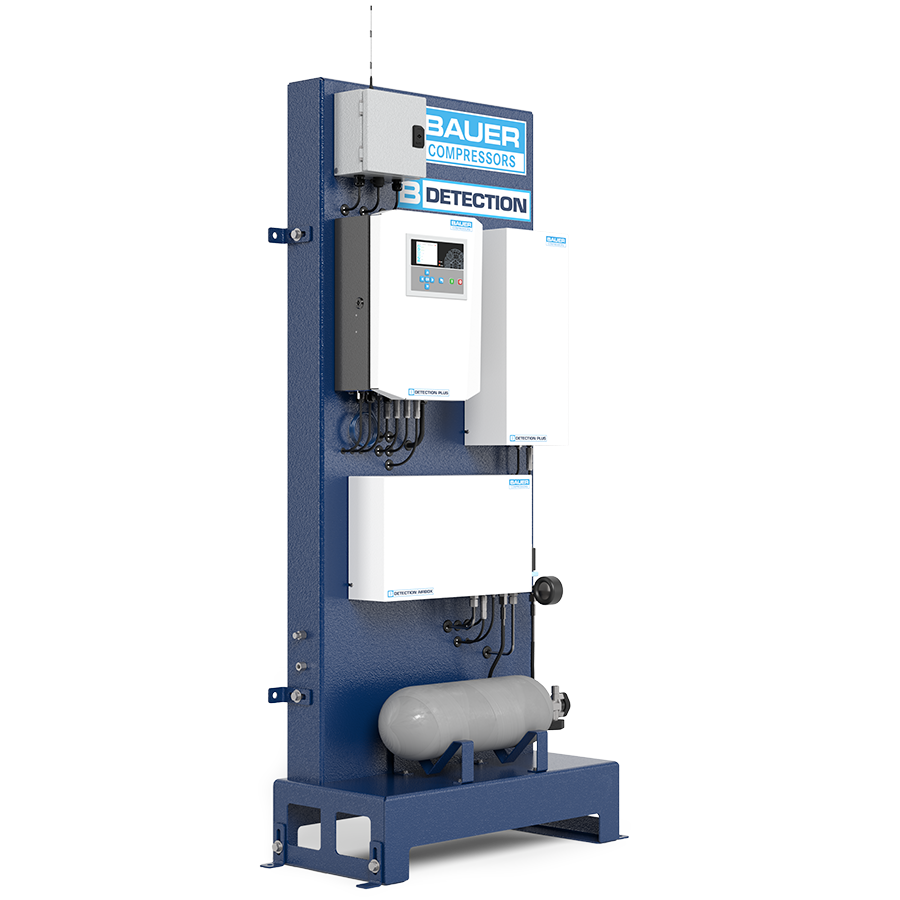

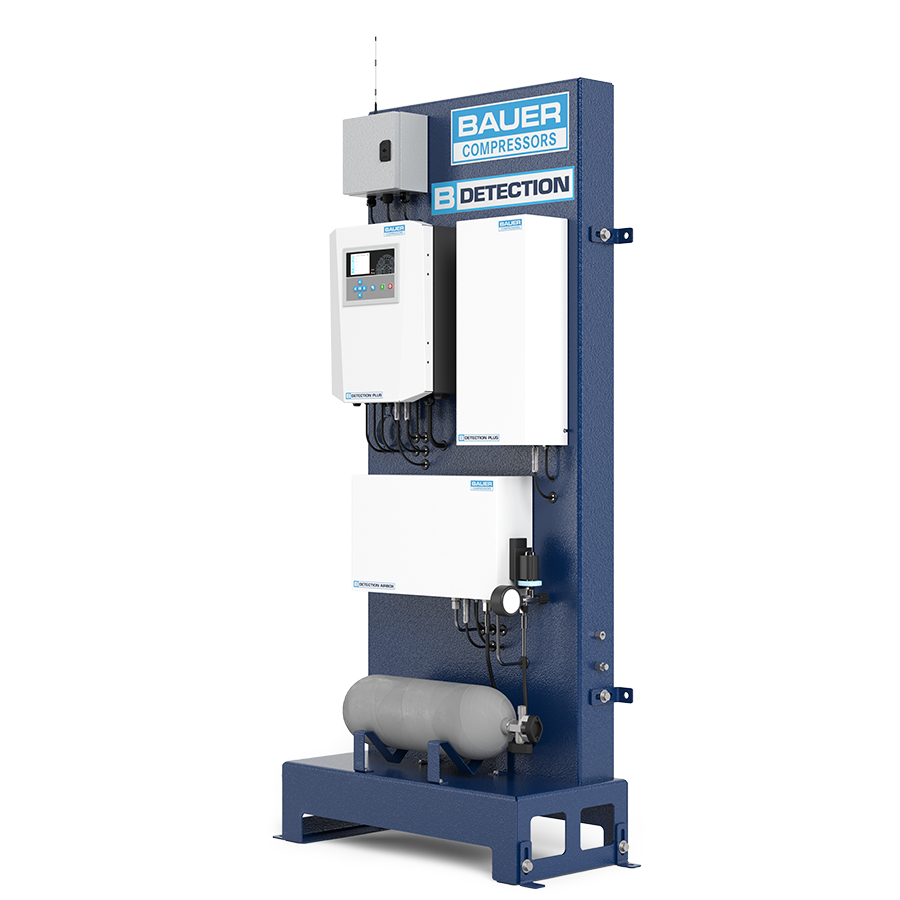

B-DETECTION PLUS s FOR INTEGRATION INTO COMPRESSOR SYSTEMS

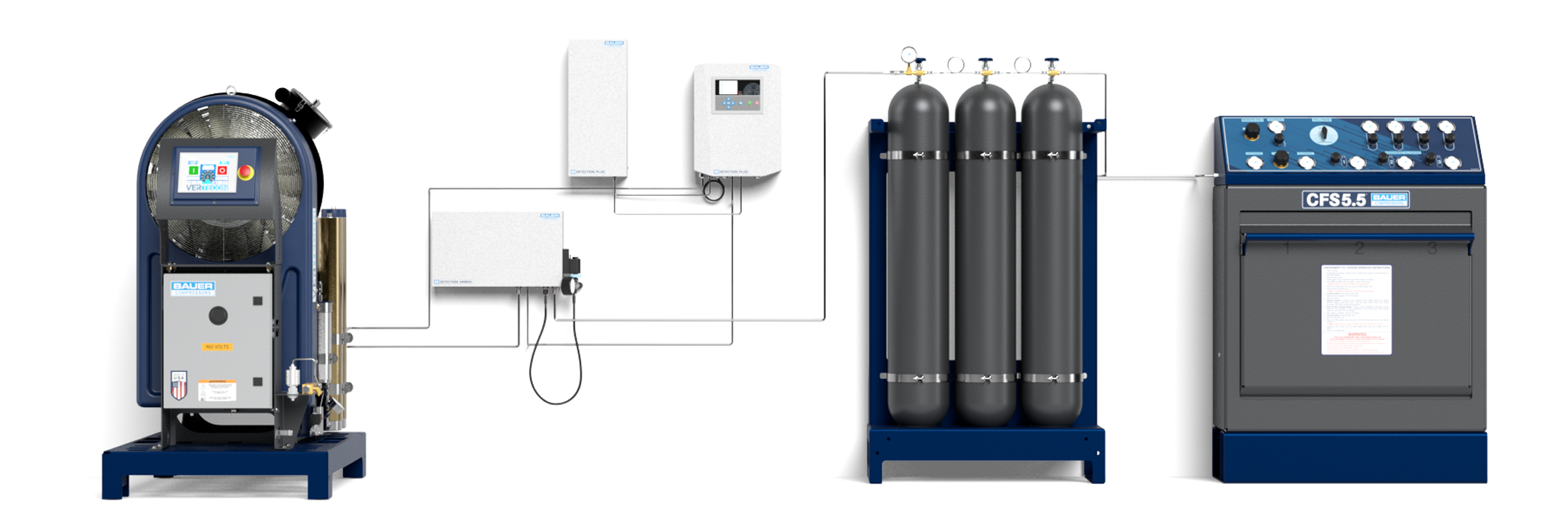

B-DETECTION PLUS s can be integrated onto your new BAUER compressor system at the factory or can be built for wall mount installation. To ensure optimum operating conditions for the sensors and maximize service life, B-DETECTION PLUS s is installed downstream of the breathing air purification system.
A single control unit for all components: So convenient — simply read off the current air quality values from your B-DETECTION PLUS s control unit. You can also make any changes to your B-DETECTION PLUS s convenient touchpad control.
B-DETECTION PLUS m
MOBILE AIR MONITORING ANYWHERE, ANYTIME
B-DETECTION PLUS m is a compact, portable all-in-one solution that gives you the freedom to perform reliable breathing air measurement wherever and whenever you need to.
Like the stationary models, the B-DETECTION PLUS m delivers completely reliable, ultra-precise readings to monitor compliance with NFPA limits for CO, CO2, 02 and — optionally— absolute humidity and total oil values (VOC).
B-DETECTION PLUS m offers an array of measurement options. The gas sampling unit supplied as standard is used to measure air quality in breathing air cylinders. Optionally, measurement can also be performed directly at the compressor. As a further option, intake air can be measured before it enters the compressor.
The control unit allows a tailored measurement profile to be selected for measuring air directly from the compressor or air cylinder.
The transport case offers IP65-rated protection against dust and water jet ingress and withstands harsh environmental conditions. Sensors are rapidly and easily accessible, simplifying maintenance.
An integrated data logger with SD card functionality ensures data is accessible for future use. The patented special design of the dewpoint sensor delivers an extrarapid response for virtually instantaneous humidity measurement.
The system offers fast venting to allow the gas sampling unit to be quickly detached from the air sampling connector.
If limit values are exceeded, the B-DETECTION PLUS m control unit activates visual alarm signals.
