OPTIONAL FEATURES

  • Heavy-duty weatherproof enclosure
  • Sound attenuation
  • Passivation of piping
  • Ultrasonic testing of piping welds
  • Hydro testing of piping and relevant components
  • Special certifications and documentation
  • CE electrical code, CRN pressure vessel code

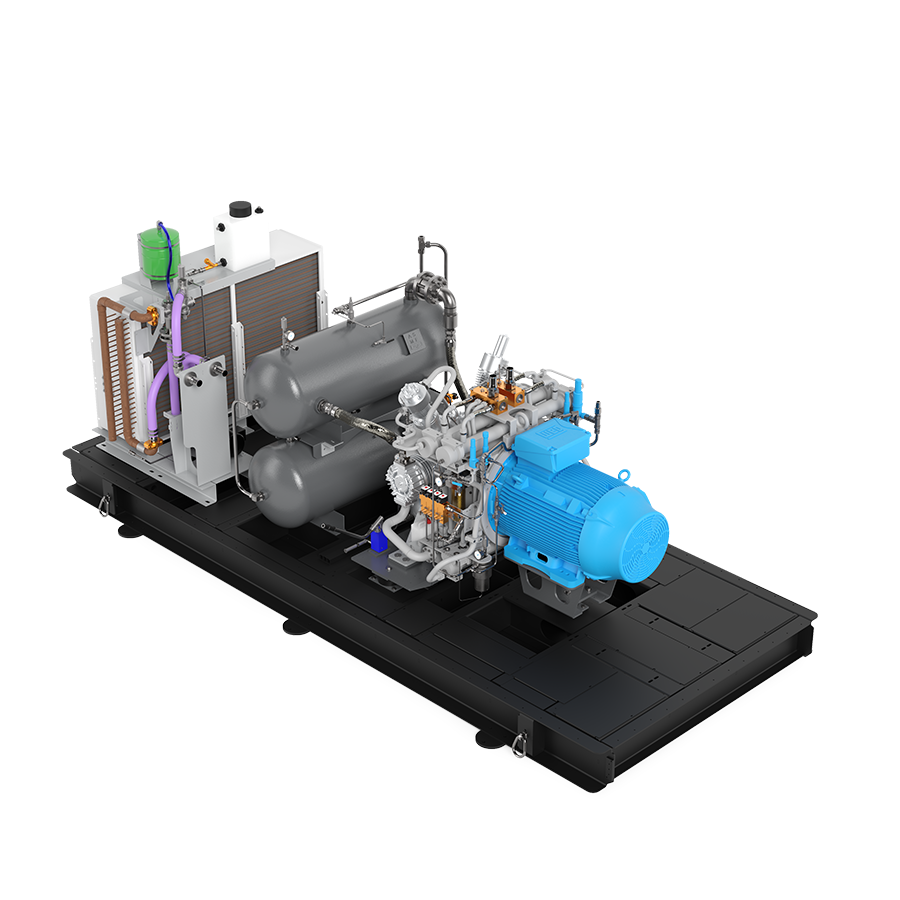

C26 X-Fill®

CNG Systems for Large Fleets

  • 150-175 HP (110-132 kW)
  • 175-404 scfm (297-686 m3/h)
  • 5000 psig (345 bar) psig max discharge pressure

SYSTEM FOOTPRINT

DIMENSIONS L x W x H inches (mm)

  • 297.6” L X 99.6” W X 117” H (7559.04 mm x 2529.84mm x 2971.8mm)

WEIGHT pounds (kg) approx.

  • 22700 lbs (10297 kgs)

C52 X-Fill

SPECIFICATIONS

  • 270-335 HP (200-250 kW)
  • 340-761 scfm (578-1293 m3/h)
  • 5000 psig (345 bar) max discharge pressure

SYSTEM FOOTPRINT

Dimensions LxWxH inches(mm)

  • 297.6” X 99.6” X 117”
    (7559.04 mm X 2529.84 mm X 2971.8 mm)

WEIGHT pounds (kg) approx.

  • 22700 lbs (10297 kg)

TECHNICAL DATA

Model Inlet Pressure Final Pressure Capacity Number of Stages Running Speed Motor
  PSIG BAR PSIG BAR
  MIN  MAX MIN MAX MIN MAX CFM M3/H DGE/H  DLE/H GGE/H GLE/H   RPM HP kW

C26.2 10 15 0.07  1 5000 345 175 297 75 284 88 333 4 1500 150 100
C26.10 30 65 2 4.5 5000 345 319 542 137 519 160 606 4 1500 175 132
C26.12 65 145 4.5 10 5000 345 361 613 155 587 181 685 4 1500 175 132
C26.13 145 230 10 16 5000 345 404 686 173 655 202 765 4 1500 175 132

C52.0 1 5 0.07 0.34 5000 345 340 578 146 553 170 644 4 1500 250 185
C52.2 10 15 0.7 1 5000 345 351 596 150 568 176 666 4 1500 270 200
C52.10 30 65 2 4.5 5000 345 618 1050 265 1003 309 1169 4 1500 335 250
C52.12 65 145 4.5 10 5000 345 722 1227 309 1170 361 1366 4 1500 335 250
C52.13 145 214 10 15 5000 345 761 1293 326 1234 381 1442 4 1500 335 250

Note: All capacities are based on pipeline quality natural gas supplied at the maximum allowable inlet pressure to the compressor and 3600 psig discharge pressure. For all the models lower inlet pressure is possible but with reduced capacity and possibly reduced discharge pressure. Motor power is a reference to maximum allowable inlet pressure and 4500 psig discharge pressure. Consult BAUER for performance at other conditions.
