Parts

STANDARD SCOPE OF SUPPLY

  • BAUER breathing air purification system with SECURUS
  • BAUER PLC based controller with multicolor touchpad display
  • NEMA 4 rated electrical enclosure with UL® listed control panel
  • Hinged fill control panel with Lexan laminate air flow/fill schematic
  • Automatic condensate drain system with non-corrosive condensate reservoir and integrated float switch
  • Automatic "Full" indication and compressor shutdown
  • Two (2) 6000 psig UN code stamped air cylinders
  • Integral SCBA storage for up to twelve (12) SCBA cylinders
  • NFPA 1901 2016 edition compliant 2 position containment fill station accommodates SCBA or SCUBA cylinders up to 31" overall length
  • Unique diesel drive system incorporating our exclusive automatic belt tensioning system
  • High gloss powder coat paint for a hard durable finish
  • Hydraulic surge brakes with breakaway actuator
  • Four (4) bank dual function cascade controls with air direction valve
  • Formed structural steel frame designed and built by BAUER
  • Hypalon® type cover protection for the operations panel and fill station
  • Refill port
  • CO monitor with calibration kit
  • 2" ball hitch

SYSTEM FOOTPRINT

DIMENSIONS L X W X H inches (mm)

  • 144” x 77” x 72” (3658mm x 1956mm x 1830mm)

WEIGHT pounds (kg)

  • 5400 lb (2450 kg)



AVAILABLE ACCESSORIES

  • OPTION PACKAGE A - Spare tire with cover
  • OPTION PACKAGE B - 75 ft hose reel and interior lights
  • OPTION PACKAGE C - Lunette eye hitch
  • OPTION PACKAGE D - Two (2) additional 6000 psig UN code stamped air cylinders

TECHNICAL DATA

Model Charging Rate1 Number of Stages Motor FAD2 RPM Purification System
  scfm l/min   HP kW
6000 PSIG (414 BAR)
TLC-13H 13 368 4 18 13.4 10.8 1420 P5 SECURUS
TLC-25H 25.2 714 5 27 7.5 21 1300 P5 SECURUS

1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig
2) Compressor capacity referenced to standard inlet conditions

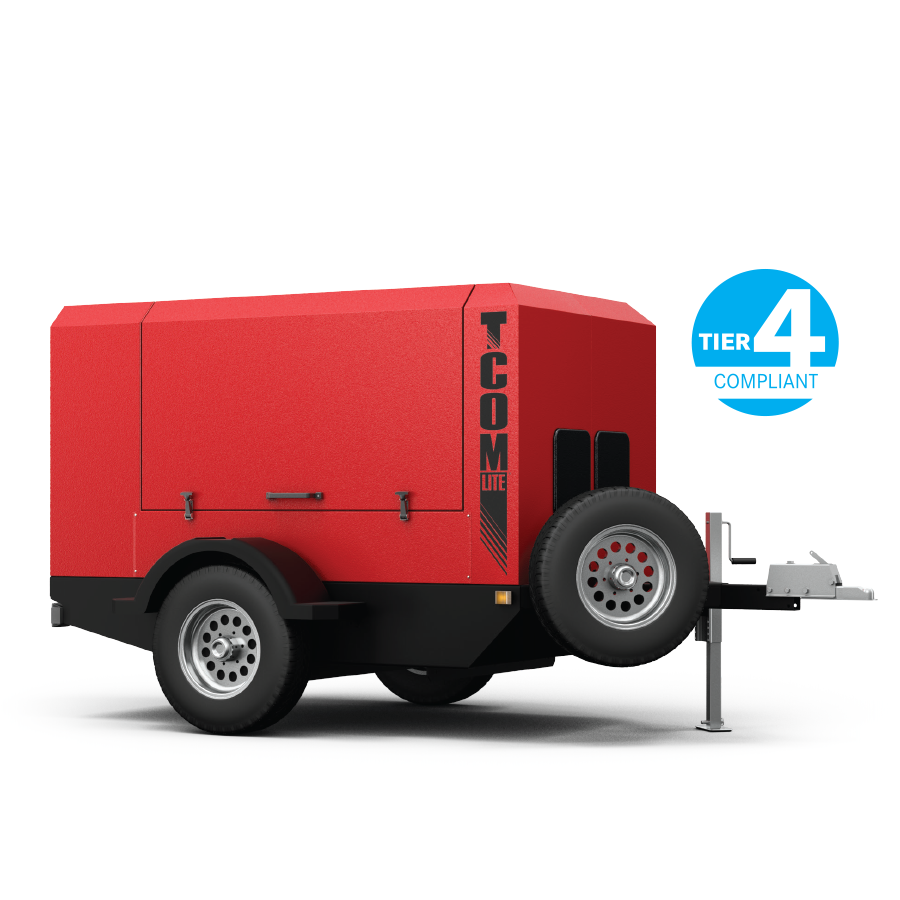

Image shown with additional accessories
Dimensions and weights are approximate and are subject to change
