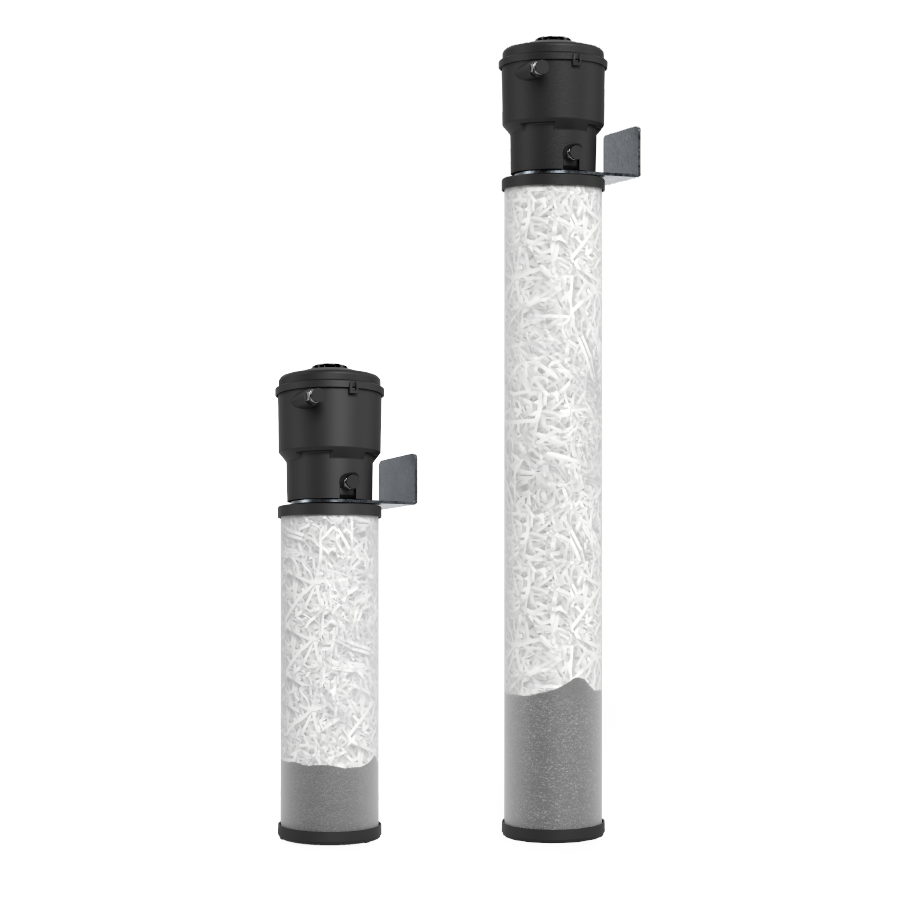

Operating temperature:
- 35 – 113°F (max. 149°F)1
- (1.5 - 45°C (max 65°C))
Operating media:
- Condensate (air, water, oil)
- Non-aggressive
- Not suitable for emulsion
(1) Max. operating temperature is 65°C, but when temperature is over 45°C, performance may decrease.
MAINTENANCE
It is recommended that you do a test once per week to evaluate water quality (residual oil content). Instructions are attached in test set. Replace filter elements when oil content in water becomes too high or at least every twelve months. Before installing new filter elements, interior of the device must be clean.
SERVICE INTERVAL
- When the first of the following parameters appears:
- 4000 operating hours of compressor2
- 12 months, regardless of compressor operating hours
- Oil concentration in the outlet reaches a concentration determined by local directives and laws.
(2) At compressor oil carryover 2,5mg/m3. Lower/higher oil carryover means proportionally longer/shorter lifetime (e.g., if oil carryover is 5mg/m3, lifetime reduces to 2000 operating hours).
HOUSING FOOTPRINT

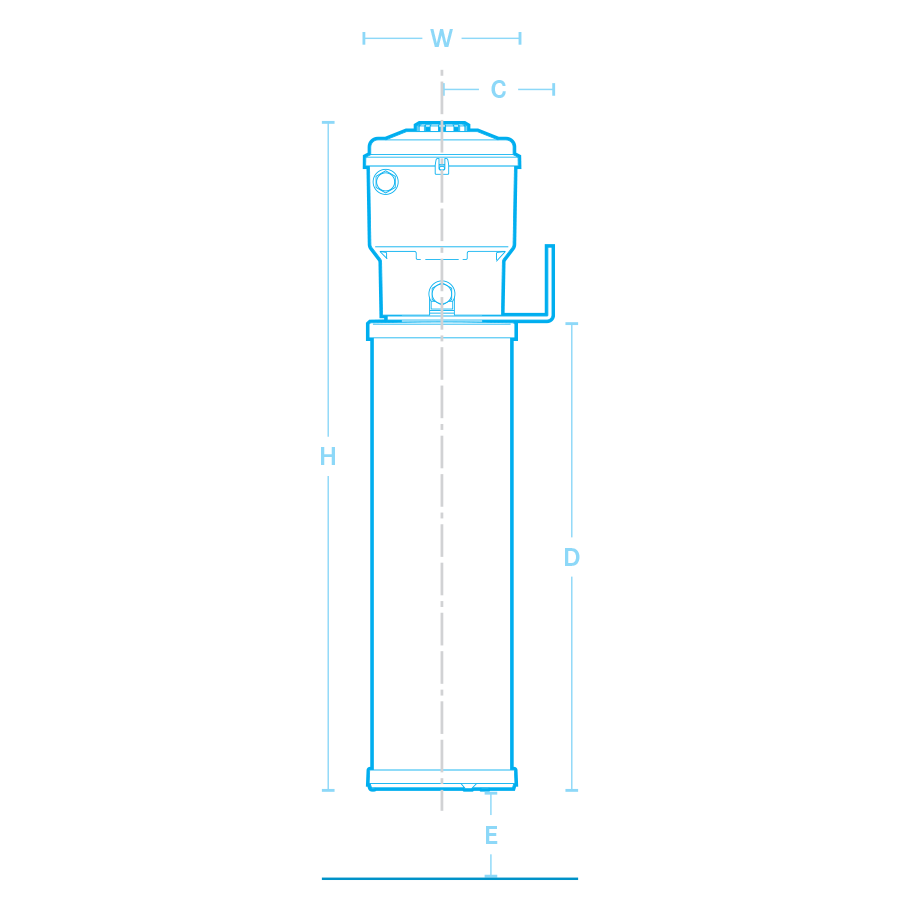

WOSm1: DIMENSIONS H X W X C X D X E inches (mm)
- 19” x 4.17” x 3.15” x 13.2” x 1.97” (483mm x 106mm x 80mm x 335mm x 50mm)
WOSm2: DIMENSIONS H X W X C X D X E inches (mm)
- 13.5” x 4.17” x 3.15” x 26.4” x 1.97” (816mm x 106mm x 80mm x 670mm x 50mm)
MATERIALS
- Housing Material: Pa6 30% Glass fiber, Aluminium
- Transparent Part: Acrylic
- Fittings: Steel, Anodized
- Sealing: NBR
- Filter Material: Polypropylene (PP), Active Carbon (AC)
- Bonding: Polyurethane
WOS m CONNECTION POINTS
| Model | Number of Inlet Connections | Number of Outlet Connections |
| Connection Type: Push-In Fitting for Hose 8mm | ||
| WOSm1 | 1 | 1 |
| WOSm2 | 1 | 1 |
TECHNICAL DATA
| Model | Max Oil Adsoption | Max FAD | Max Condensate Flow1 | Number of Inlet Connections | Number of Outlet Connections | |||
| Connection Type: Push-in Fitting Hose for 8mm | ||||||||
| g | scfm | Nm3/min | l//h | |||||
| Cold Climate Zone 15° C 60%RH | ||||||||
| WOSm1 | 740 | 43.05 | 1.23 | 0.57 | 1 | 1 | ||
| WOSm2 | 1520 | 88.9 | 2.54 | 1.19 | 1 | 1 | ||
| Mild Climate Zone 25° C 60%RH | ||||||||
| WOSm1 | 650 | 37.8 | 1.08 | 0.90 | 1 | 1 | ||
| WOSm2 | 1340 | 78.05 | 2.23 | 1.87 | 1 | 1 | ||
| Hot Climate Zone 40° C 100%RH | ||||||||
| WOSm1 | 370 | 21.9 | 0.62 | 1.91 | 1 | 1 | ||
| WOSm2 | 770 | 45.2 | 1.28 | 3.96 | 1 | 1 | ||
(1) Max condensate volume per condensate drain single discharge is 0.250 ltr.
