KEY FEATURES AND BENEFITS

  • Uninterrupted N2 Supply: Point-of-use nitrogen generation provides an alternative to external sources of nitrogen by eliminating potential supply chain interruptions and the logistical hassles associated with merchant gas

  • Cost Savings: Point-of-use nitrogen systems are a cost-effective alternative to merchant gas which require long-term contracts and are associated with long-term locked-in rate

  • Personnel Safety: Point-of-use nitrogen is a safer alternative by eliminating the need for shuttling heavy merchant gas cylinders back and forth between supplier and point of use

  • Robust Design: All BAUER on-demand nitrogen systems are designed to operate continuously in all manner of severe ambient conditions indoors or outdoors

  • Superior Reliability: All BAUER systems are designed and manufactured to provide BAUER’s legendary reliability and performance with lowest overall lifecycle cost. In addition, every system is backed by BAUER’s two (2) year all-inclusive warranty and lifetime support

STANDARD SCOPE OF SUPPLY

  • Self-contained, fully-integrated turnkey nitrogen generation system with integrated high- pressure booster for discharge pressures up to 6,000 PSIG
  • Engineered to operate reliably in harsh industrial setting
  • Feed air compressor: single-stage air-cooled, oil-injected, continuous-duty rotary screw compressor
  • High pressure multi-stage reciprocating booster compressor, pressure-lubricated, continuous-duty rated
  • 3-stage membrane pre-filtration system
  • High durability membrane air separators
  • TEFC electric motors for each compressor with v-belt drive, guard, and belt tensioning device
  • Port for condensate drain to costumer collection device or drain system
  • UL® labeled Control Panel with PLC controller. Includes touchscreen interface (for operation, maintenance and troubleshooting)
  • In-line oxygen analyzer to determine nitrogen purity
  • Pressure sensors for oil and final product pressure
  • 24-month warranty, lifetime support guarantee

SNG SERIES SOLUTIONS

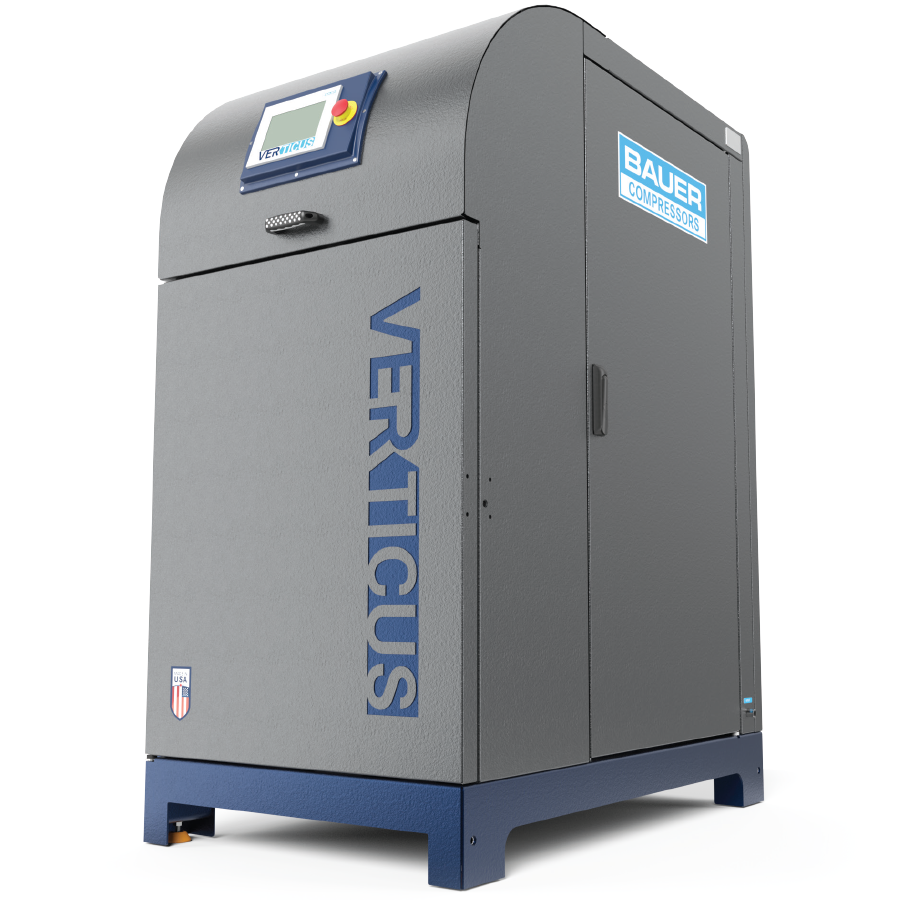

VERTICUS
SNG III
sng
SNG 9

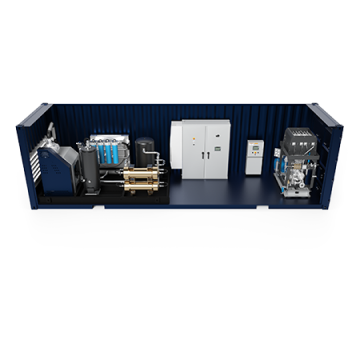

sng 15-28
SNG 15/28

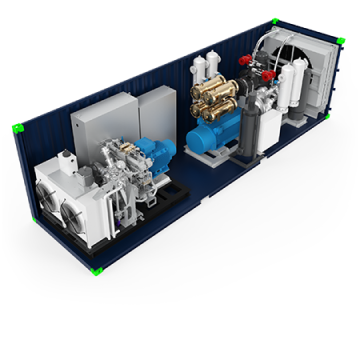

sng 42-76-ts
SNG 42/76/TS

BAUER  SNG SYSTEM FEATURES

  • Wide ambient operating temperature range 40° to 113°F (4.4° to 45°C)

  • Electrically powered and available in the following power configurations:
    • 460 v, 3ph, 60 hz (standard)
    • 380/400 v, 3 ph 50 hz or 60 hz (optional)
    • 580 v, 3 ph, 60 hz (optiona
    • *Other voltages available upon request

OPTIONAL FEATURES:

  • Special Offshore Paint
  • Class1, Div2 execution for hazardous locations
  • Sound attenuation (less than 85dBA)
  • BAUER Connect® IoT Remote Telemetry
  • Special Offshore Paint
