CFS5.5®
The BAUER CFS 5.5 Series of Containment SCBA/SCUBA Fill Stations are created with safety and quality at the forefront of the design. The CFS 5.5 containers are independently tested to the rigorous standards and stringent test parameters dictated by NFPA 1989 and NFPA 1901. Yet, we exceeded the requirements of 88 cubic feet and 4500 PSIG and utilized 110 cubic feet 5500 PSIG. Formed plate steel and fewer weldments significantly improve the safety in the event of a cylinder failure. We also evaluated ergonomics in our design and included an "easy load" door design, where you can open and close the door with less than 18 lbs of force without hyperextending your hand or wrist.

Need assistance with selecting the correct solution to meet your specific requirements?
To see the entire Breathing Air Brochure
FILL POSITIONS
- One, two, or three
- Mobile or Stationary
- Dual function cascade controls with remote fill outlets
STANDARD SCOPE OF SUPPLY
- Complete with cylinder scuff guard, SCBA fill connection, fill hose, and bleed valve
- Fill control panel with adjustable regulator, relief valve, manual control valve and pressure gauge for each fill position ("S" version only)
- CFS 5.5® "M" versions designed for use with remote air distribution panel
- Mounting base is standard on “S” version and optional on “M” version
- Convenient door handle actuation
- Bottom venting
- Reduced footprint
SYSTEM FOOTPRINTS
CFS5.5®-1S & OXY-1S
DIMENSIONS L x W x H inches (mm)
- 18" x 21" x 55" (457 mm x 533 mm x 1397 mm)
WEIGHT pounds (kg)
- 433 lbs (196 kg)
CFS5.5®-1M & OXY-1M
DIMENSIONS L x W x H inches (mm)
- 18" x 21" x 39" (457 mm x 533 mm x 990 mm)
WEIGHT pounds (kg)
- 360 lbs (163 kg)
CFS5.5®-2S & OXY-2S
DIMENSIONS L x W x H inches (mm)
- 30" x 21" x 53" (762 mm x 533 mm x 1346 mm)
WEIGHT pounds (kg)
- 670 lbs (304 kg)
CFS5.5®-2M & OXY-2M
DIMENSIONS L x W x H inches (mm)
- 30" x 21" x 39" (762 mm x 533 mm x 990 mm)
WEIGHT pounds (kg)
- 550 lbs (249 kg)
CFS5.5®-3S
DIMENSIONS L x W x H inches (mm)
- 41" x 21" x 53" (1041 mm x 533 mm x 1346 mm)
WEIGHT pounds (kg)
- 905 lbs (411 kg)
CFS5.5®-3M
DIMENSIONS L x W x H inches (mm)
- 41" x 21" x 39" (1041 mm x 533 mm x 990 mm)
WEIGHT pounds (kg)
- 740 lbs (336 kg)
CFS5.5® DESIGNS
CFS5.5®-1S

CFS5.5®-2S

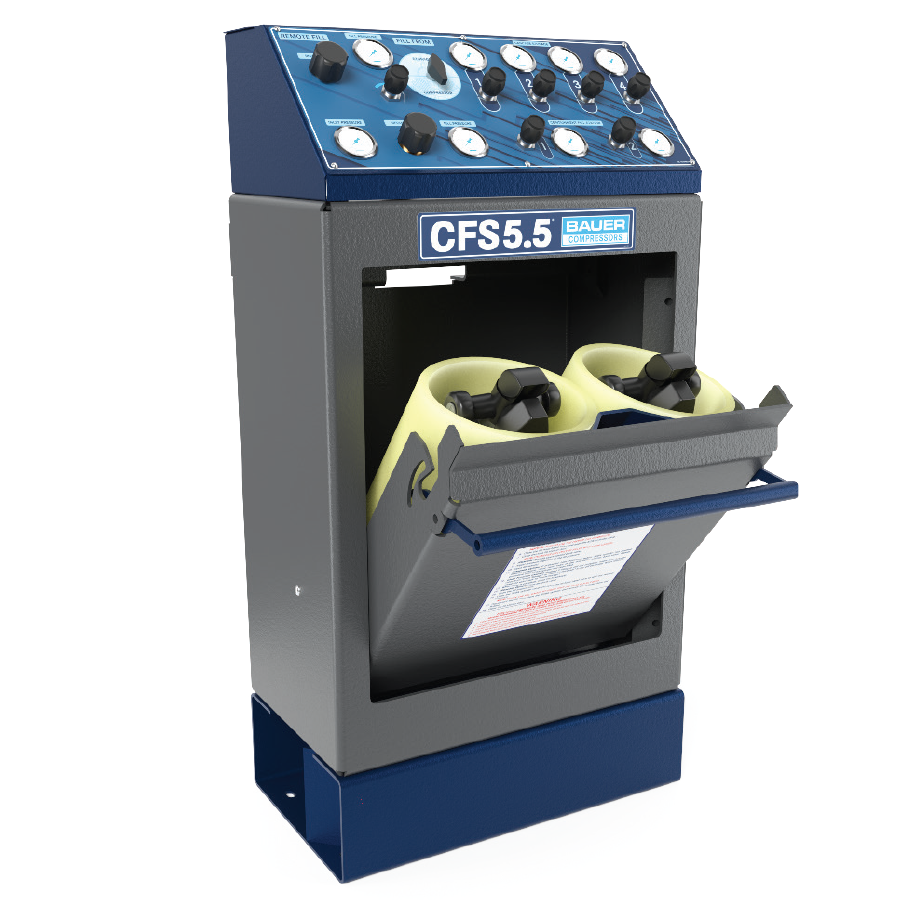

CFS5.5®-2S/CSCD

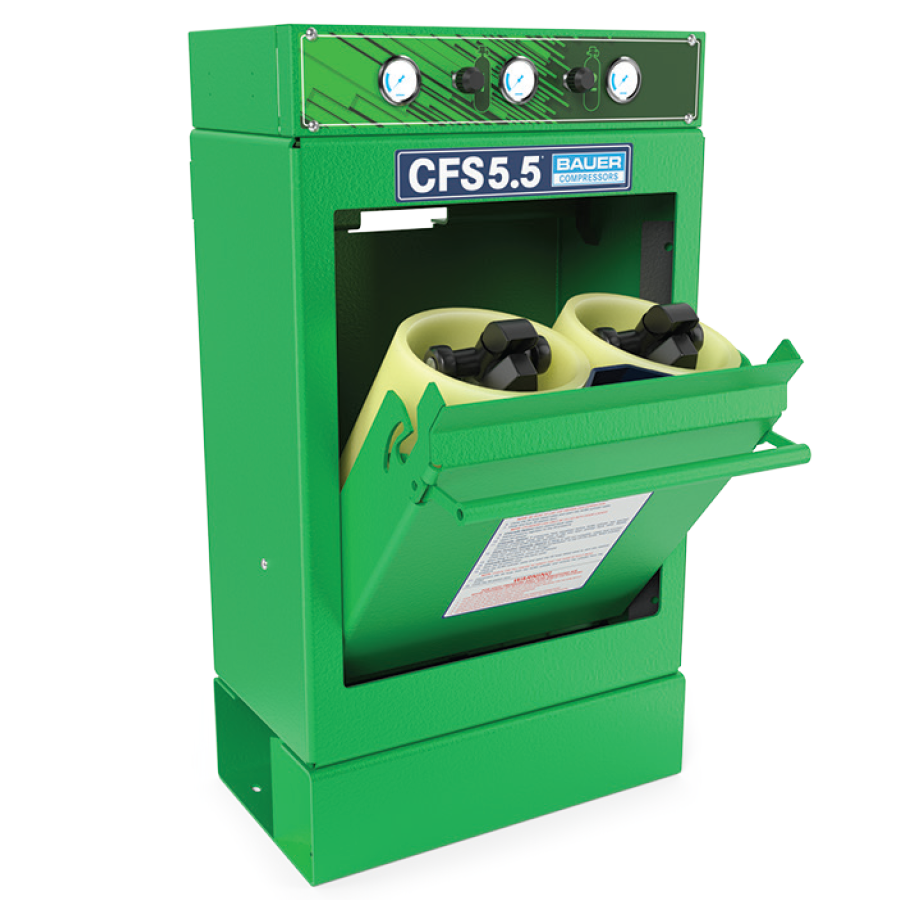

OXY-2S

CFS5.5®-3S

CFS5.5®-3S/CSCD
