STANDARD SCOPE OF SUPPLY

  • Premium 12’ enclosed trailer with tandem 3500 GVW rated axels, extended tongue length with a  2-5/16” coupler, and white-finished interior walls
  • 13 or 25 CFM charge rate BAUER diesel-driven compressor unit with P5 Securus purifier and CO monitor
  • BAUER CFS5.5 2 with 4 bank Air Control Panel
  • To ensure proper ventilation, the trailer is equipped with 3 roller shutter doors
  • 4 exterior scene lights

AVAILABLE ACCESSORIES

  • To ensure ample illumination, a 12-volt electrical system is installed powered by two (2) Optima type batteries. Recharging each cell is accomplished via either our unique solar charging system or 110-volt battery charger
  • A remote fill hose connection including adjustable regulator for up to 6000 PSIG service, gauge and isolation valve connected to a manual rewind hose reel with 75 feet of hose rated for 6000 PSIG service
  • Available 3-foot by 6-foot, 12-volt powered awning can be installed to provide weather protection
  • A “drop-in” type rack built to accommodate up to six (6) SCBA cylinders

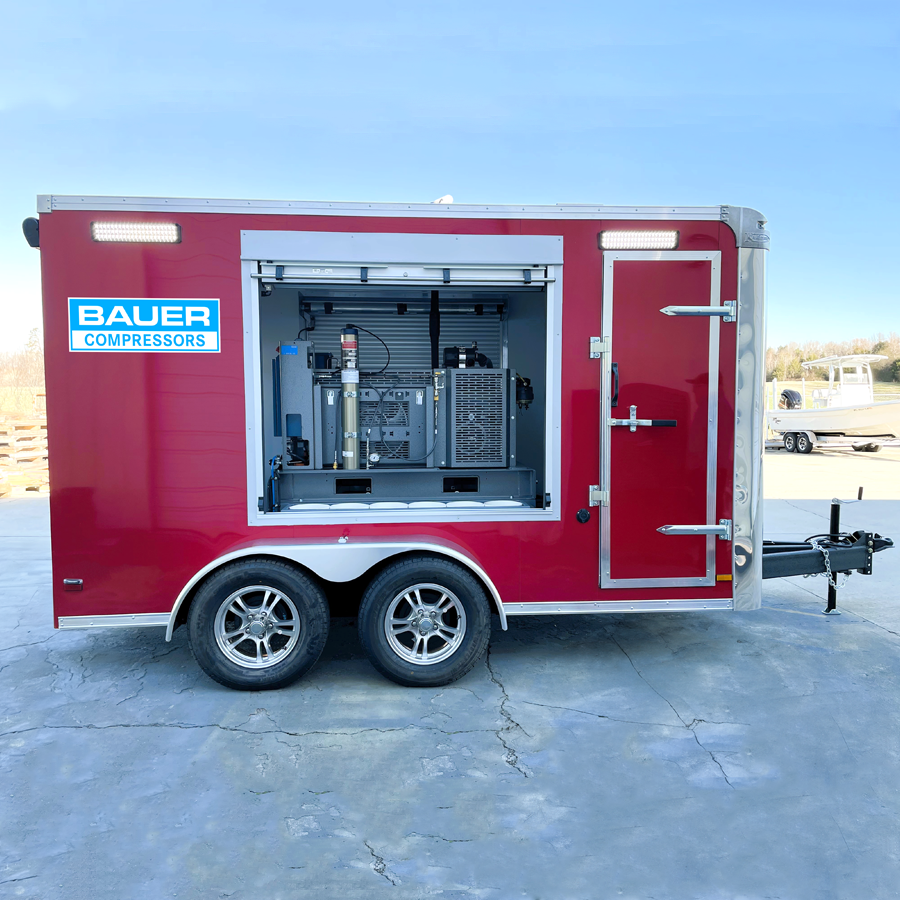

TCOM-MS Exterior

Tcom-MS-Exterior-01
tcom-MS-exterior-02
tcom-ms-exterior-03

TCOM-MS Interior

tcom-ms-interior-01
tcom-ms-interior-02
tcom-ms-interior-03
