AVAILABLE ACCESSORIES (FACTORY INSTALLED)
- CO monitoring system
- B-SECURUS - Electronic moisture monitoring for the purification system
- B-Kool (floor mount only)
- H2S monitoring system with audible alarm
- B-VIRUS FREE® (Dealer Installed)
SYSTEM FOOTPRINT
VEC05 - VEC13:
DIMENSIONS L X W X H inches (mm)
- 54” x 34” x 56” (1372.6 mm x 863.6 mm x 1422.4 mm)
WEIGHT pounds (kg)
- 800 - 900 lbs (363 - 408.2 kg)
VEC18 - VEC26:
DIMENSIONS L X W X H inches (mm)
- 54” x 34” x 63” (1372.6 mm x 863.6 mm x 1600.2 mm)
WEIGHT pounds (kg)
- 1200 - 1300 lbs (544.3 - 589.7 kg)

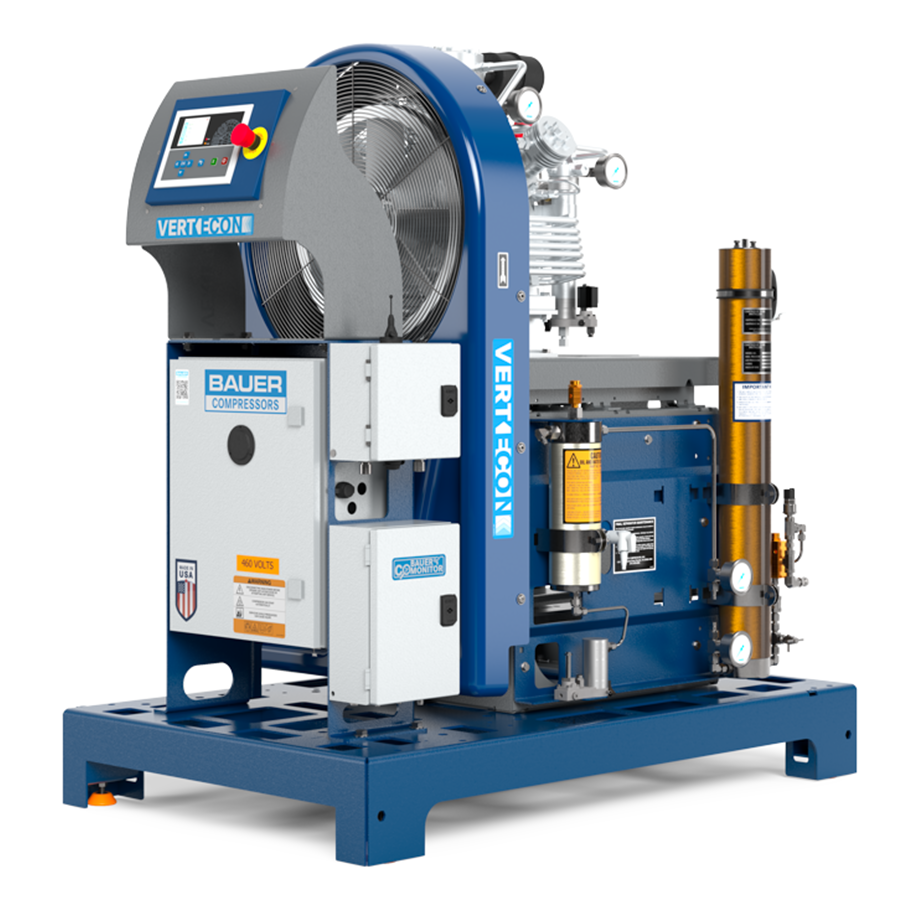

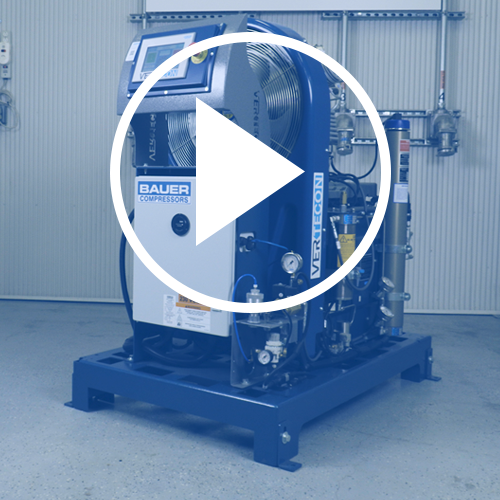

STANDARD SCOPE OF SUPPLY
- BAUER breathing air purification system
- Open vertical cabinet made of formed sheet and plate goods provide a firm foundation for all pressure bearing components
- Modern design with unsurpassed maintenance accessibility (no hand tools are required for normal maintenance checks and fluid level confirmation)
- BAUER PLC based controller with 7” color HMI touchscreen display
- Belt adjustment tool
- NEMA 4 rated electrical enclosure with UL® listed control panel
- All wiring harnesses incorporated within a corrugated loom with number coding for easy system diagnosis
- Emergency stop push button
- .049 wall thickness stainless steel tubing throughout, no cheap plastic tubing
- Rugged powder coat finish
- Zero loss automatic condensate drain system
- Interstage pressure gauges (locally mounted)
- Compressor on/off, final pressure, oil pressure, and high temperature shutdown
- Motor overload indication
- Final separator counter with shutdown and operator indication
- Unique integrated positioning base which ensures correct installation every time
TECHNICAL DATA
| Model | Charging Rate1 | Number of Stages | Motor | FAD2 | RPM | Purification System | ||
|---|---|---|---|---|---|---|---|---|
| SCFM | l/min | HP | kW | |||||
| 5000 PSIG (345 BAR) | ||||||||
| VEC08-E1/E3 | 8.4 | 238 | 3 | 7.5 | 5.6 | 7 | 1250 | P31 |
| VEC20-E3 | 21 | 595 | 4 | 15 | 11 | 17.5 | 1300 | P5 |
| VEC26-E3 | 26.4 | 748 | 4 | 20 | 15 | 22 | 1350 | P5 |
| 6000 PSIG (414 BAR) | ||||||||
| VEC05-E1/E3 | 5 | 142 | 3 | 5 | 3.7 | 4 | 1050 | P2 |
| VEC10-E1/E3 | 9.7 | 275 | 4 | 7.5 | 5.6 | 8.1 | 1180 | P2 |
| VEC13-E1/E3 | 13 | 368 | 4 | 10 | 7.5 | 10.8 | 1420 | P2 |
| VEC18-E3 | 18 | 510 | 4 | 15 | 11 | 15 | 1325 | P5 |
| VEC25-E3 | 25.2 | 714 | 5 | 20 | 15 | 21 | 1300 | P5 |
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
E1= Single phase electric, 230 VAC/60 Hz.
E3=Three phase electric, 208/230/460 VAC/60 Hz.
Other voltages are available on request.
Dimensions and weight are approximate and are subject to change.
