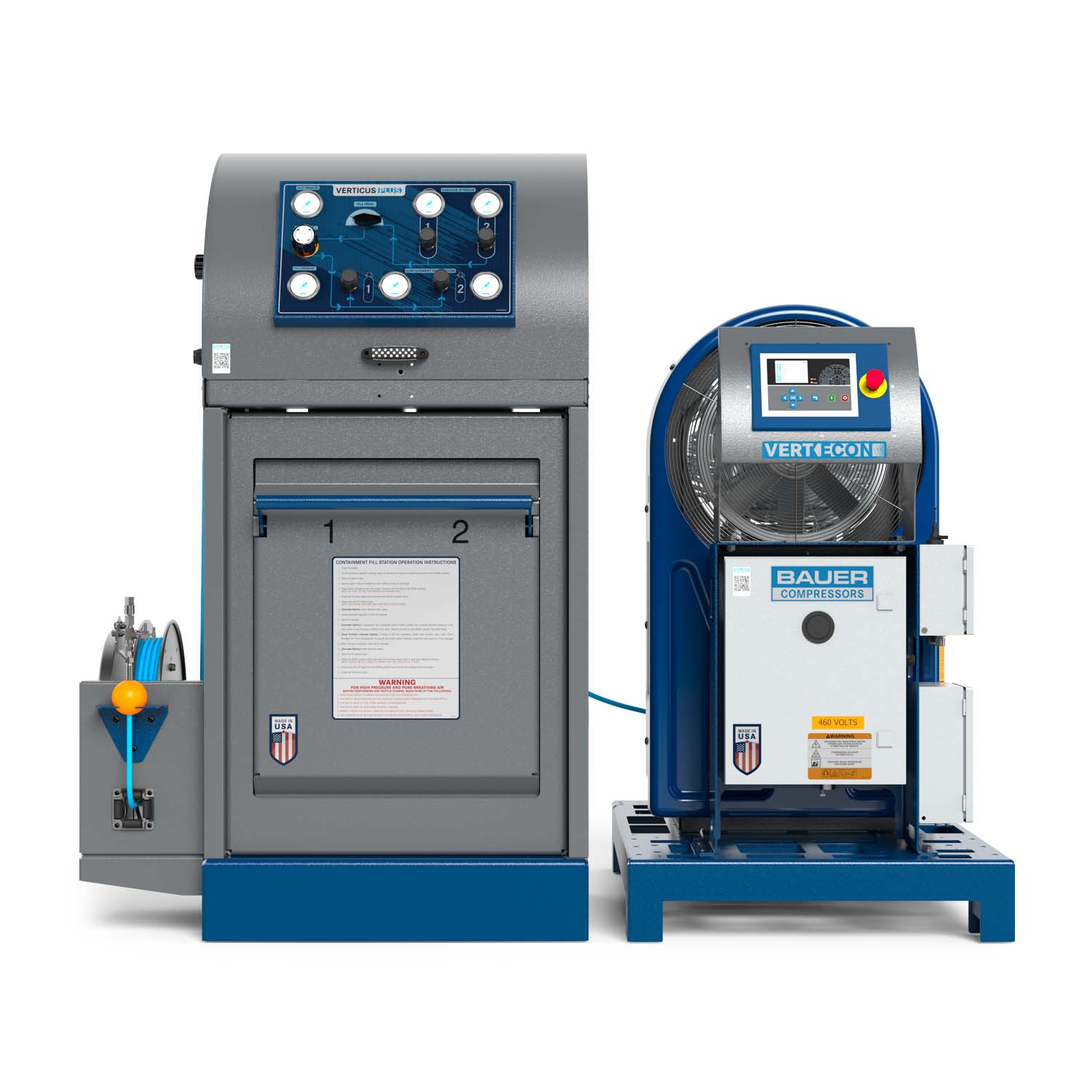

SYSTEM FOOTPRINT
VEC05 - VEC13
DIMENSIONS L X W X H inches (mm)
- 54” x 34” x 56” (1372.6 mm x 863.6 mm x 1422.4 mm)
WEIGHT pounds (kg)
- 800-900 lbs (363-408.2 kg)
VEC18 - VEC26
DIMENSIONS L X W X H inches (mm)
- 54” x 34” x 63” (1372.6 mm x 863.6 mm x 1600.2 mm)
WEIGHT pounds (kg)
- 1200-1300 lbs (544.3-589.7 kg)
SYSTEM FOOTPRINT
FILL STATION MODULE:
DIMENSIONS L X W X H inches (mm)
- 35” x 37” x 70” (737 mm x 940 mm x 1778 mm)
WEIGHT pounds (kg)
- 1200-1600 lbs (544-726 kg)
AVAILABLE ACCESSORIES (FACTORY INSTALLED)
FILL STATION MODULE
- Regulated (adjustable) remote fill hose connection to include high pressure hose reel and 100 feet of 6000 PSIG rated high pressure hose (wall mount)
- ASME air storage cylinders in lieu of standard UN bottles
- Regulated (adjustable) panel mounted remote fill hose connection
- Dual Fill/2 position
- Tri Fill/2 position
STANDARD SCOPE OF SUPPLY - FILL STATION MODULE
- Dual function cascade controls
- Two (2) UN code stamped air cylinders installed in an integral rack
- 3-way selector valve
- NFPA 1901 2016 edition compliant 2 position containment fill station accommodates SCBA or SCUBA cylinders up to 31” overall length
- Aesthetically pleasing cabinetry
- Will work with any brand compressor
- Packaged together
AVAILABLE ACCESSORIES (FACTORY INSTALLED)
COMPRESSOR MODULE
- CO monitoring system
- SECURUS - Electronic moisture monitoring for the purification system
- B-Kool (floor mount only)
- H2S monitoring system with audible alarm
- Insulated sound attenuated cabinet
STANDARD SCOPE OF SUPPLY - COMPRESSOR MODULE
- BAUER breathing air purification system
- Open vertical cabinet made of formed sheet and plate goods provide a firm foundation for all pressure bearing components
- Modern design with unsurpassed maintenance accessibility (no hand tools are required for normal maintenance checks and fluid level confirmation)
- BAUER PLC based controller with 7” color HMI touchscreen display
- Belt adjustment tool
- NEMA 4 rated electrical enclosure with UL® listed control panel
- All wiring harnesses incorporated within a corrugated loom with number coding for easy system diagnosis
- Emergency stop push button
- .049 wall thickness stainless steel tubing throughout, no cheap plastic tubing
- Rugged powder coat finish
- Zero loss automatic condensate drain system
- Interstage pressure gauges (locally mounted)
- Compressor on/off, final pressure, oil pressure and high temperature shutdown
- Motor overload indication
- Final separator counter with shutdown and operator indication
- Unique integrated positioning base which ensures correct installation every time
TECHNICAL DATA
| Model | Charging Rate | Number of Stages | Motor | FAD | RPM | Purification System | ||
| SCFM | l/min | HP | kW | |||||
| 5000 PSIG (345 BAR) | ||||||||
| VEC08-E1/E3 | 8.4 | 238 | 3 | 7.5 | 5.6 | 7 | 1250 | P31 |
| VEC20-E3 | 21 | 595 | 4 | 15 | 11 | 17.5 | 1300 | P5 |
| VEC26-E3 | 26.4 | 748 | 4 | 20 | 15 | 22 | 1350 | P5 |
| 6000 PSIG (414 BAR) | ||||||||
| VEC05-E1/E3 | 5 | 142 | 3 | 5 | 3.7 | 4 | 1050 | P2 |
| VEC10-E1/E3 | 9.7 | 275 | 4 | 7.5 | 5.6 | 8.1 | 1180 | P2 |
| VEC13-E1/E3 | 13 | 368 | 4 | 10 | 7.5 | 10.8 | 1420 | P2 |
| VEC18-E3 | 18 | 510 | 4 | 15 | 11 | 15 | 1325 | P5 |
| VEC25-E3 | 25.2 | 714 | 5 | 20 | 15 | 21 | 1300 | P5 |
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
3) 30 HP units are in a cabinet other than depicted.
E1= Single phase electric, 230 VAC/60 Hz.
E3=Three phase electric, 208/230/460 VAC/60 Hz.
Other voltages are available on request.
Dimensions and weight are approximate and are subject to change.
