SYSTEM FOOTPRINT

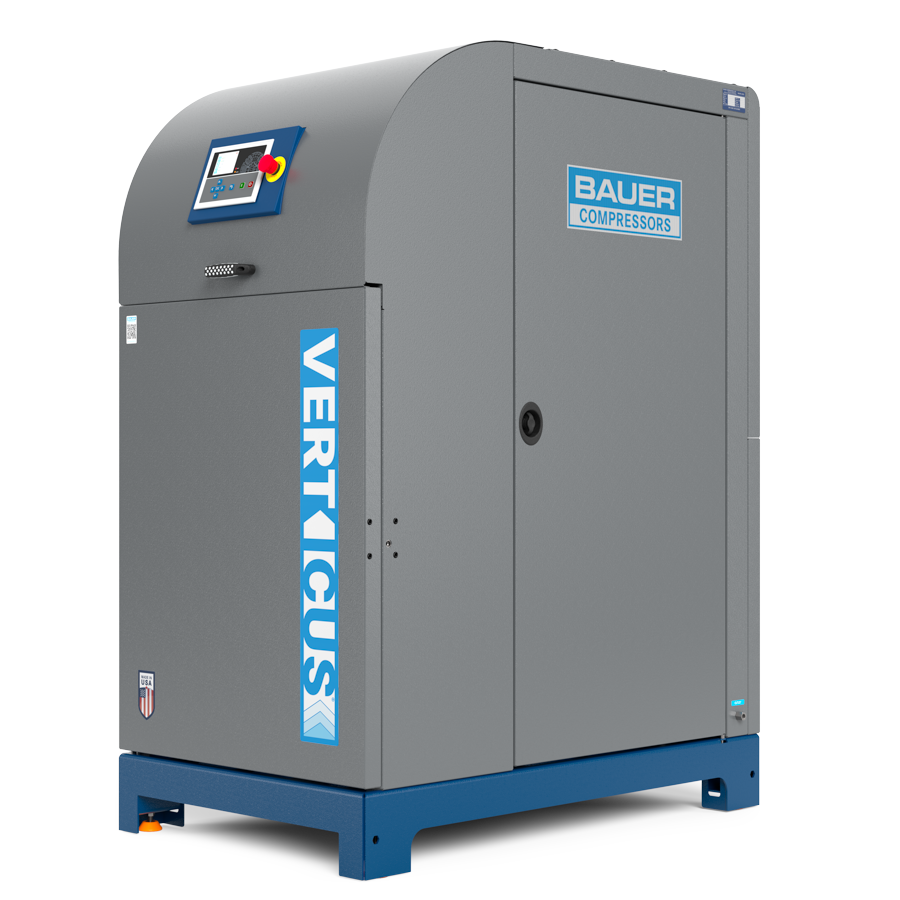

VERTICUS:
VAC5 - VAC26
DIMENSIONS L X W X H inches (mm)
- 55” x 35” x 70” (1397mm x 737mm x 1778mm)
WEIGHT pounds (kg)
- 1000 - 1400 lb (453.6 - 635 kg)
AVAILABLE ACCESSORIES (FACTORY INSTALLED)
- CO monitoring system
- B-Kool (cabinet or floor mount)
- H2S monitoring system with audible alarm
- B-VIRUS FREE® (Dealer Installed)
STANDARD SCOPE OF SUPPLY
- BAUER breathing air purification system with B-SECURUS
- BAUER PLC based controller with 7” color HMI touchscreen display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high-temperature safety shutdowns
- Emergency stop push button and automatic start/stop control
- Zero loss automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic “Full” indication and compressor shutdown
- Interstage pressure gauges (locally mounted)
- Vertically hinged front operations panel and lift-off side maintenance access doors
- Inlet filter maintenance indicator
- Unique hinged front operations panel
- Unique air induction plenum ensures optional cooling air flow
TECHNICAL DATA
| Model | Charging Rate1 | Number of Stages | Motor | FAD2 | RPM | Purification System | ||
|---|---|---|---|---|---|---|---|---|
| SCFM | l/min | HP | kW | |||||
| 5000 PSIG (345 BAR) | ||||||||
| VAC20-E3 | 21 | 595 | 4 | 15 | 11 | 17.5 | 1300 | P5 B-SECURUS |
| VAC26-E3 | 26.4 | 748 | 4 | 20 | 15 | 22 | 1350 | P5 B-SECURUS |
| 6000 PSIG (414 BAR) | ||||||||
| VAC5-E1/E3 | 5 | 142 | 3 | 5 | 3.7 | 4 | 1050 | P2 B-SECURUS |
| VAC08-E1/E3 | 8 | 227 | 3 | 7.5 | 5.6 | 7 | 1450 | P2 B-SECURUS |
| VAC10-E1/E3 | 9.7 | 275 | 4 | 7.5 | 5.6 | 8.1 | 1180 | P2 B-SECURUS |
| VAC13-E1/E3 | 13 | 368 | 4 | 10 | 7.5 | 10.8 | 1420 | P2 B-SECURUS |
| VAC18-E3 | 18 | 510 | 4 | 15 | 11 | 15 | 1325 | P5 B-SECURUS |
| VAC25-E3 | 25.2 | 714 | 5 | 20 | 15 | 21 | 1300 | P5 B-SECURUS |
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
3) 30 HP units are in a cabinet other than depicted.
E1= Single phase electric, 230 VAC/60 Hz.
E3=Three phase electric, 208/230/460 VAC/60 Hz.
Other voltages are available on request.
Dimensions and weight are approximate and are subject to change.
