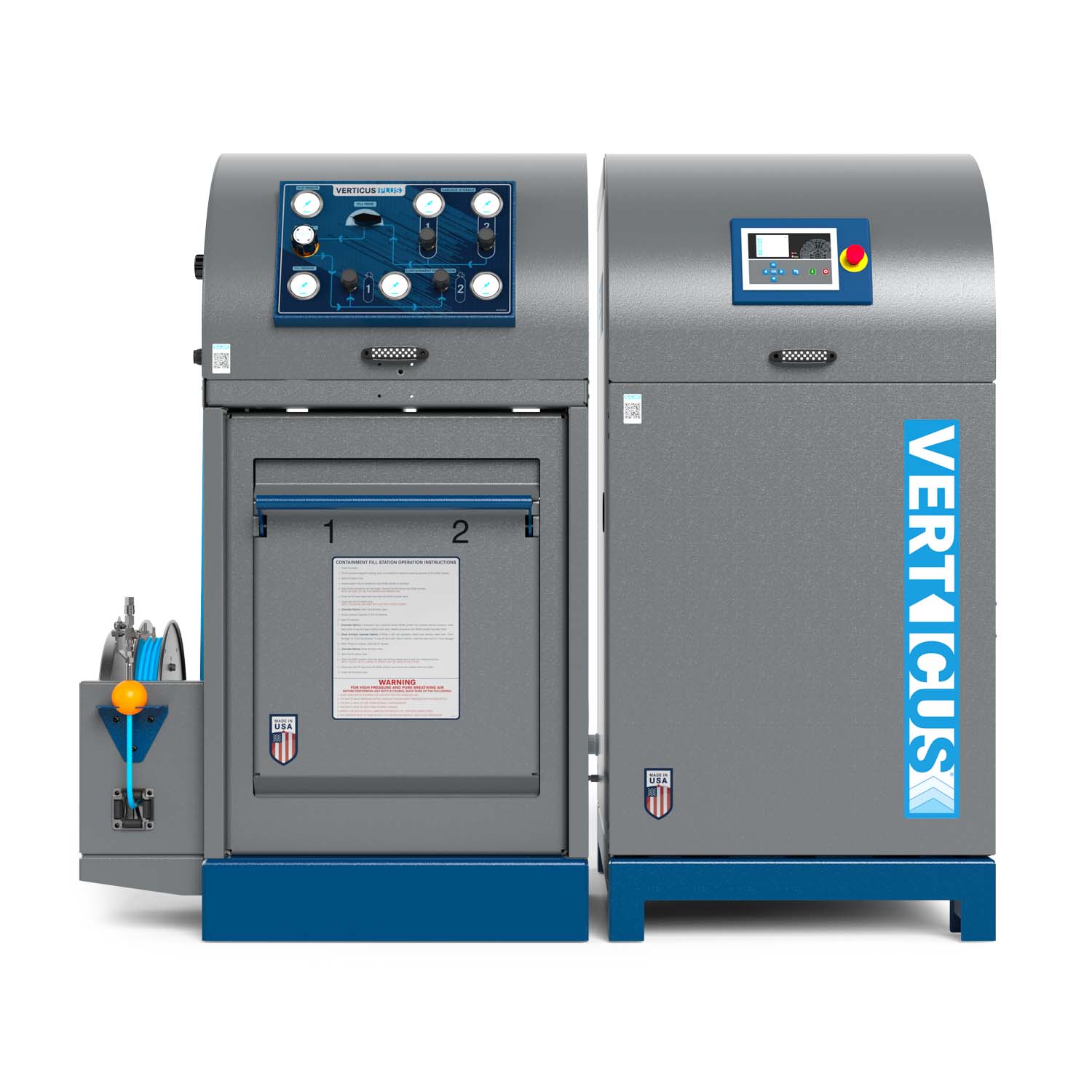

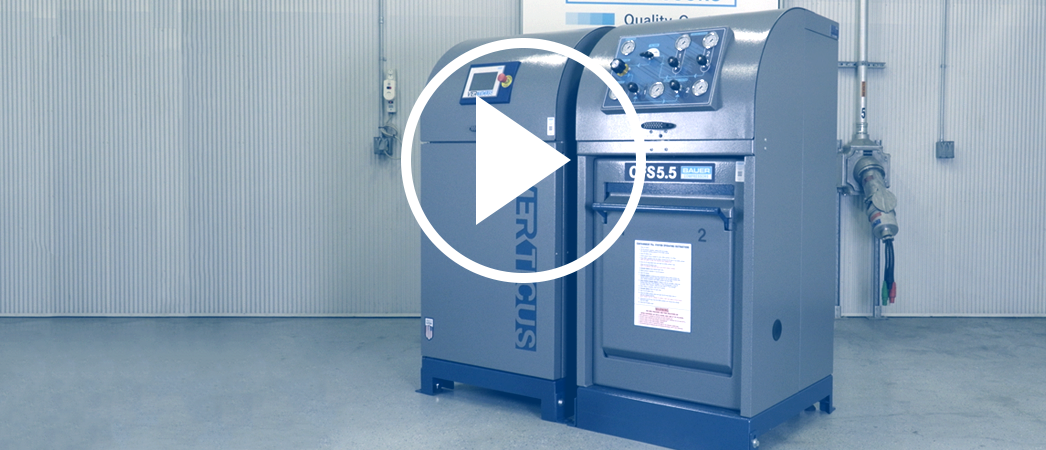

SYSTEM FOOTPRINT
VERTICUS COMPRESOR MODULE:
DIMENSIONS L X W X H inches (mm)
- 55" x 35" x 70" (1397 mm x 737 mm x 1778 mm)
WEIGHT pounds (kg)
- 1000-1400 lbs (453.6-635 kg)
FILL STATION MODULE:
DIMENSIONS L X W X H inches (mm)
- 35" x 37" x 70" (1397 mm x 737 mm x 1778 mm)
WEIGHT pounds (kg)
- 1200-1600 lbs (453.6-635 kg)
AVAILABLE ACCESSORIES (FACTORY INSTALLED)
COMPRESSOR MODULE:
- CO monitoring system
- B-Kool (floor mount only)
- H2S monitoring system with audible alarm
AVAILABLE ACCESSORIES (FACTORY INSTALLED)
FILL STATION MODULE:
- Regulated (adjustable) remote fill hose connection to include high pressure hose reel and 100 ft of 6000 psig rated high pressure hose (wall mount)
- ASME air storage cylinders in lieu of standard UN bottles
- Regulated (adjustable) panel mounted remote fill hose connection
- Dual Fill/2 position
- Tri Fill/2 position
STANDARD SCOPE OF SUPPLY - COMPRESSOR MODULE
- BAUER breathing air purification system with SECURUS
- BAUER PLC based controller with 7” color HMI touchscreen display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high temperature safety shutdowns
- Emergency stop push button and automatic start/stop control
- Zero loss automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic “full” indication and compressor shutdown
- Interstage pressure gauges (locally mounted)
- Vertically hinged front operations panel and lift-off side maintenance access doors
- Inlet filter maintenance indicator
- Unique hinged front operations panel
STANDARD SCOPE OF SUPPLY - FILL STATION MODULE
- Two (2) dual function cascade controls
- Two (2) UN code stamped air cylinders installed in an integral rack
- 3-way selector valve
- NFPA 1901 2016 edition compliant 2 position containment fill station accommodates SCBA or SCUBA cylinders up to 31” overall length
- Aesthetically pleasing cabinetry
- Will work with any brand compressor
TECHNICAL DATA
| Model | Charging Rate1 | Number of Stages | Motor | FAD2 | RPM | Purification System | ||
|---|---|---|---|---|---|---|---|---|
| SCFM | l/min | HP | kW | |||||
| 6000 PSIG (414 BAR) | ||||||||
| VT-P/5-E1/E3 | 5 | 142 | 3 | 5 | 3.7 | 4 | 1050 | P2 B-SECURUS |
| VT-P/8-E1/E3 | 8.4 | 238 | 3 | 7.5 | 5.6 | 7 | 1250 | P2 B-SECURUS |
| VAC10-E1/E3 | 9.7 | 275 | 4 | 7.5 | 5.6 | 8.1 | 1180 | P2 B-SECURUS |
| VAC13-E1/E3 | 13 | 368 | 4 | 10 | 7.5 | 10.8 | 1420 | P2 B-SECURUS |
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
E1= Single phase electric, 230 VAC/60 Hz.
E3=Three phase electric, 208/230/460 VAC/60 Hz.
Other voltages are available on request.
Dimensions and weight are approximate and are subject to change.
