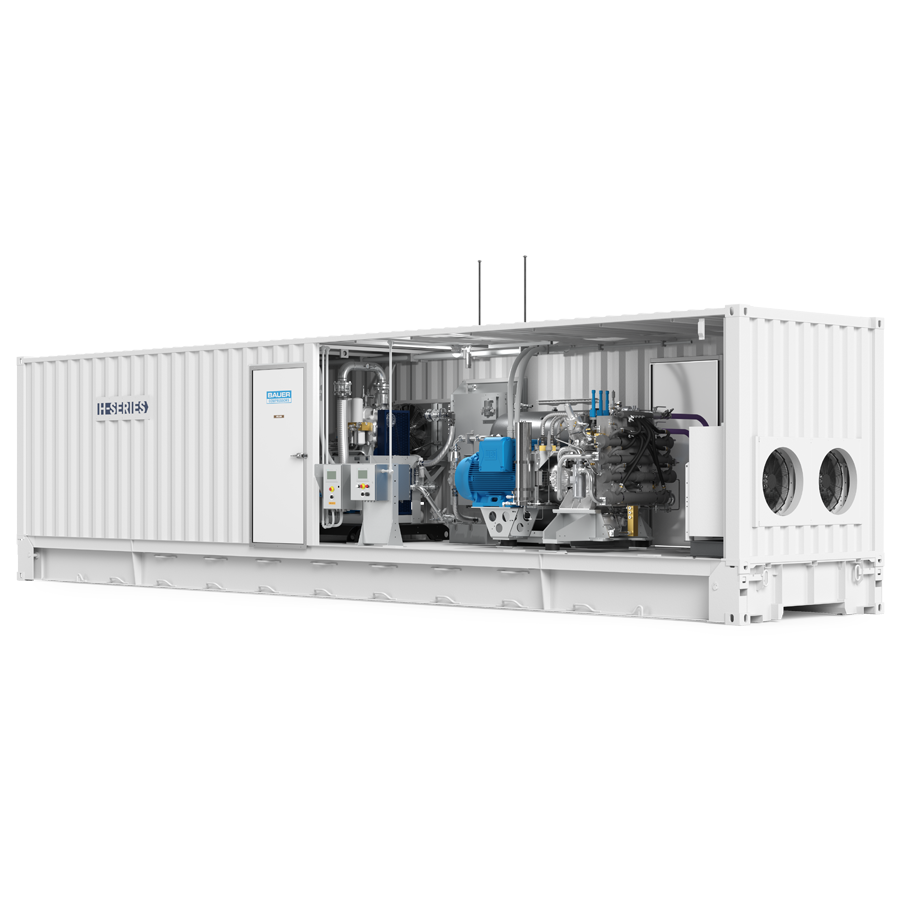

SYSTEM FOOTPRINT
Dimensions LxWxH feet (mm)
- 40' L x 8' W x 9.5' H (12192 mm x 2438 mm x 2895 mm)
WEIGHT pounds (kg)
- 22,700 lbs (10,297 kg) Approximately
Technical Data
| Model | Max Inlet Pressure | Capacity FGD | RPM | Number of Stages | Motor | Drive | |||
| PSIG | BAR | SCFM | M3/HR | HP | kW | ||||
| UP TO 5000 PSIG | |||||||||
| GRU & H23.12 (XXL) | 15 | 1 | 92 | 157 | 1500 | 5 | 85-100 | 64-75 | E3 |
| GRU & H26.12 (XXL) | 15 | 1 | 305 | 520 | 1500 | 5 | 250-275 | 187-205 | E3 |
| GRU28 & H52.12 (XXL) | 15 | 1 | 612 | 1044 | 1500 | 5 | 4885-535 | 362-399 | E3 |
