STANDARD SCOPE OF SUPPLY

  • Multi-stage, air-cooled, pressure-lubricated, continuous-duty rated reciprocating compressor
  • Electric TEFC motor with v-belt drive, belt guard, and belt tensioning device
  • Automatic condensate drain with condensate collector
  • Collector includes a switch for high condensate level
  • Automatic operation with PLC controller
  • Includes operator keypad and text display for operation, maintenance, and troubleshooting
  • NEMA 4 rated electrical enclosure with UL listed control panel
  • Fused control voltage transformer
  • Pressure sensors for oil pressure and final pressure
  • Temperature switch
  • Emergency stop push button
  • Audible alarm
  • Ambient temperature range 40˚ F to 113˚ F
  • 24-month warranty

I-SERIES 1 (VACI) SPECIFIC

  • Sound attenuated enclosure

SYSTEM FOOTPRINT

Open Design

DIMENSIONS L x W x H inches (mm) approx.

  • 54” x 34” x 56” (1372.6 mm x 863.6 mm x 1422.4 mm)

WEIGHT pounds (kg) approx.

  •  800 - 900 lbs (363 - 408.2 kg)

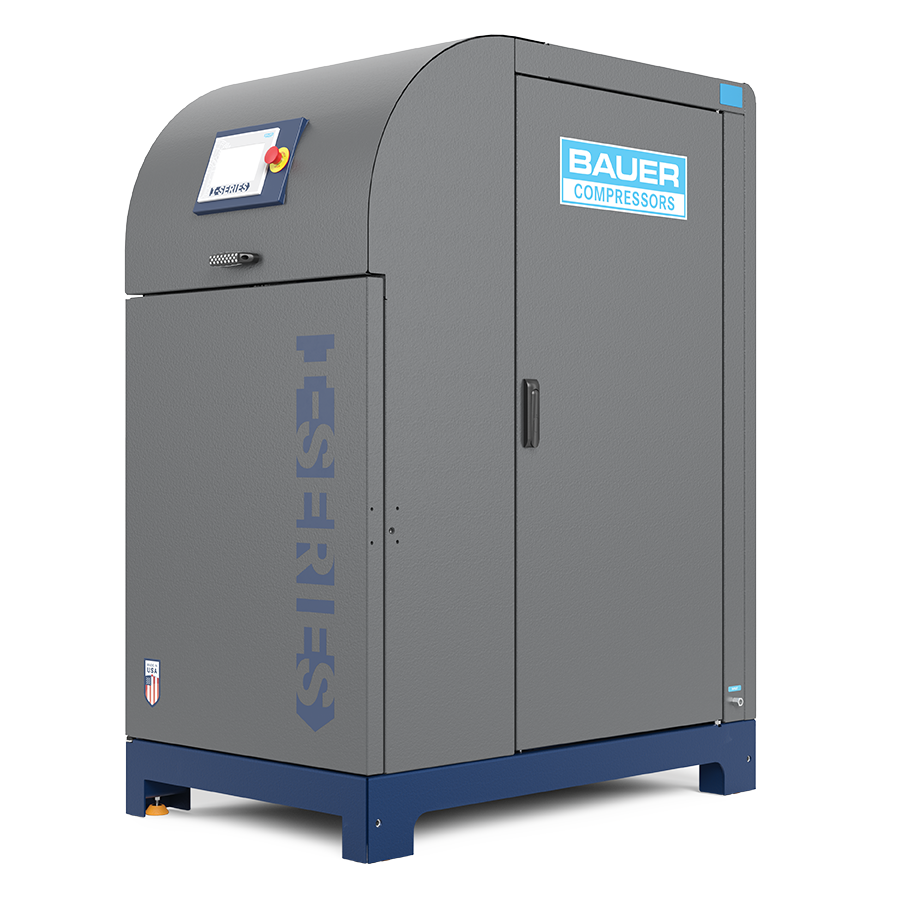

Enclosed Design

DIMENSIONS L x W x H inches (mm) approx.

  • 55” x 35” x 70” (1397 mm x 889 mm x 1778 mm)

WEIGHT pounds (kg) approx.

  • 800-1400 lbs (363-635 kg)

TECHNICAL DATA

Model Capacity FAD1 Number of Stages Motor Drive
  SCFM l/min   HP kW
5000 PSIG (345 BAR)
V*CI120 7.6 215 3 7.5 5.5 E1/E3
V*CI150 18 513 4 15 11 E3
V*CI180 22 623 4 20 15 E3
6000 PSIG (414 BAR)
V*CI100H 4 113 3 5 3.7 E1/E3
V*CI12.14 8.6-10.5 244-300 4 7.5-10 5.5-7.5 E1/E3
V*CI15.112 15 425 4 15 11 E3
V*CI18.12 20 566 5 20 15 E3

* E = Enclosed Design , A = Open Design

1) Volume flow rate according to ISO 1217.

2) Models 15.11 And 18.1 are available for 7000 psig final pressure.

E1 = 230 /1/ 60

E3 = 460/3/ 60

Other Voltages And Frequencies Are Available Upon Request.
