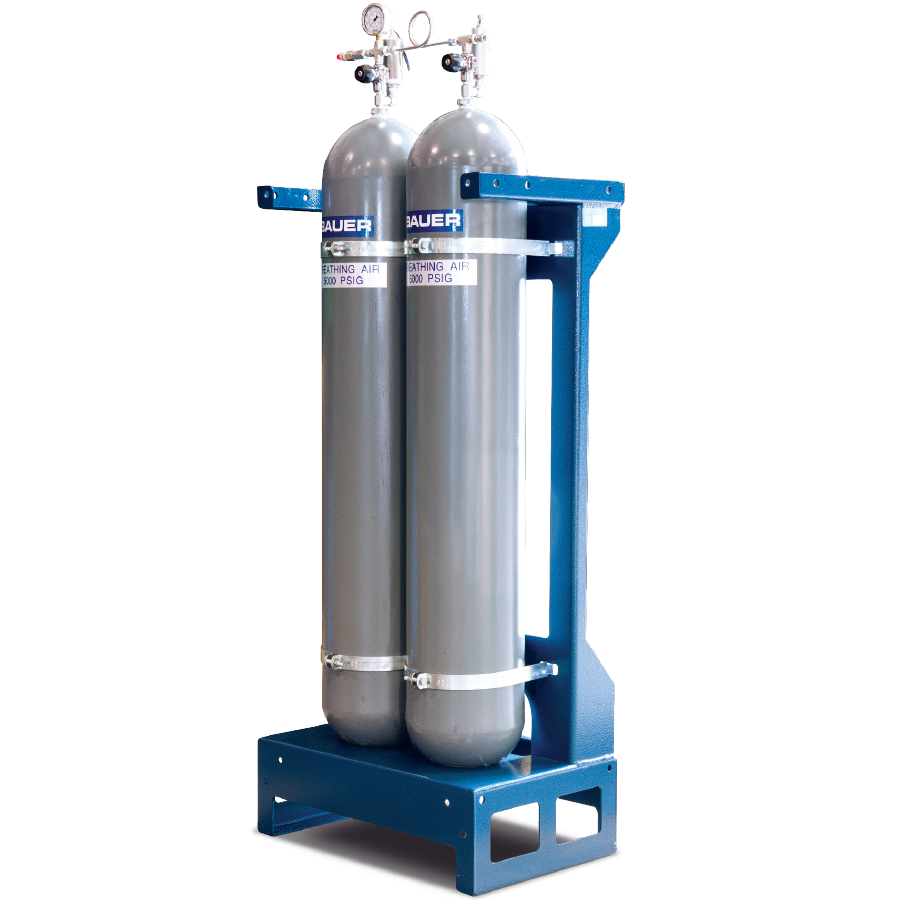

ASME Air Storage
- ASME cylinder, 436 scfm referenced to 70° F & 5000 psig; 941 scfm at 6000 psig; 537 scfm at 7000 psig.
- Nominal water volume 1.47 cubic feet.
- Section VIII MAWP = 5250 psi, Appendix 22 MAWP = 7000 psi.
- Weight, 400 lbs. empty.
- ASME Section VIII, Division 1 latest edition for non-corrosive service only.
Technical Data for ASME
| Model | Pressure Ratings Working/Test |
Water Volume | Air Capacity At Working Pressure |
Dimensions* | Weight | ||
| Outer Diameter | Lenght | ||||||
| PSIG | in3 | f3 | f3 | INCHES | LBS | ||
| ASME 5000 | 5000/10500 | 2590 | 1.47 | 436 | 9.62 | 54 | 400 |
| ASME 6000 | 6000/10500 | 2590 | 1.47 | 491 | 9.62 | 54 | 400 |
| ASME 7000 | 7000/10500 | 2590 | 1.47 | 571 | 9.62 | 54 | 400 |
* Dimension includes cylinder valve on ISO/UN cylinders.
ISO/UN Air Storage
All UN cylinders are shipped with a protective cap for the cylinder valve. Valve caps are shipped installed on loose cylinders and shipped loose with racked assemblies. The mandatory retest period for UN cylinders is every ten (10) years. Under no circumstances are these cylinders to be filled to a pressure exceeding the marked service pressure at 70° F.
Technical Data for ISO/UN
| Model | Pressure Ratings Working/Test |
Water Volume | Air Capacity At Working Pressure |
Dimensions* | Weight | ||
| PSIG | in3 | f3 | f3 | INCHES | LBS | ||
| ISO/UN 4350 | 4350/6525 | 4893 | 2.83 | 758 | 11.25 | 55 | 245 |
| ISO/UN 4500 | 4500/6750 | 2750 | 1.59 | 444 | 9.31 | 55 | 144 |
| ISO/UN 5000 | 5000/7500 | 2750 | 1.59 | 472 | 9.38 | 55 | 158 |
| ISO/UN 6000 | 6000/9000 | 2640 | 1.53 | 509 | 9.28 | 55 | 188 |
* Dimension includes cylinder valve on ISO/UN cylinders.
BULK AIR STORAGE
Bulk storage for limiting the number of compressors starts to 4 times per hour can be calculated by the following formula:
VR = 58 x (QC / ΔP)
- VR = Volume of storage, cubic feet water volume
- QC = Capacity of the compressor, standard cubic feet per minute (scfm)
- ΔP = Approximate dead band of the final pressure switch, pounds per square inch (psig)
Multiple cylinders can be used for applications that require a large volume of storage.
Contact BAUER for sizing storage with multiple banks for cascading.
TECHNICAL DATA FOR GASES AT PRESSURE
The table below list the volume of different gases that can be compressed into one (1) cubic foot water volume at the given pressure. The information is based on 70° F and accounts for the compressibility of the gas. The table can be used to calculate the volume of air or gas that can be stored in a cylinder of known water volume. Likewise, the water volume of a cylinder can be calculated if the capacity of air or gas stored in the cylinder is known.
| Gauge Pressure | Air | Nitrogen | Argon | Helium | |||||
|---|---|---|---|---|---|---|---|---|---|
| PSIG | BAR | SCFM | m3 | SCFM | m3 | SCFM | m3 | SCFM | m3 |
| 1000 | 69 | 70.29 | 1.99 | 69.30 | 1.96 | 71.79 | 2.03 | 66.37 | 1.88 |
| 1500 | 103.4 | 104.77 | 2.97 | 102.74 | 2.91 | 108.50 | 3.07 | 98.12 | 2.78 |
| 2000 | 137.9 | 137.77 | 3.9 | 134.90 | 3.82 | 145.30 | 4.11 | 128.55 | 3.64 |
| 2500 | 172.4 | 169.11 | 4.79 | 165.39 | 4.68 | 181.50 | 5.14 | 158.08 | 4.48 |
| 3000 | 206.9 | 198.96 | 5.63 | 193.82 | 5.49 | 216.30 | 6.13 | 186.78 | 5.29 |
| 3500 | 241.4 | 226.14 | 6.4 | 220.26 | 6.24 | 249.20 | 7.06 | 214.66 | 6.08 |
| 4000 | 275.9 | 251.34 | 7.12 | 244.39 | 6.92 | 279.90 | 7.93 | 241.79 | 6.85 |
| 4500 | 310.3 | 274.85 | 7.78 | 266.60 | 7.55 | 308.30 | 8.73 | 268.19 | 7.6 |
| 5000 | 344.8 | 296.57 | 8.4 | 286.67 | 8.12 | 334.40 | 9.47 | 293.90 | 8.32 |
| 5500 | 379.3 | 316.03 | 8.95 | 305.80 | 8.66 | 358.40 | 10.15 | 318.95 | 9.03 |
| 6000 | 413.8 | 334.06 | 9.46 | 322.77 | 9.14 | 380.30 | 10.77 | 343.37 | 9.72 |
