SYSTEM FOOTPRINT
Dimensions L x W x H inches (mm) approx.

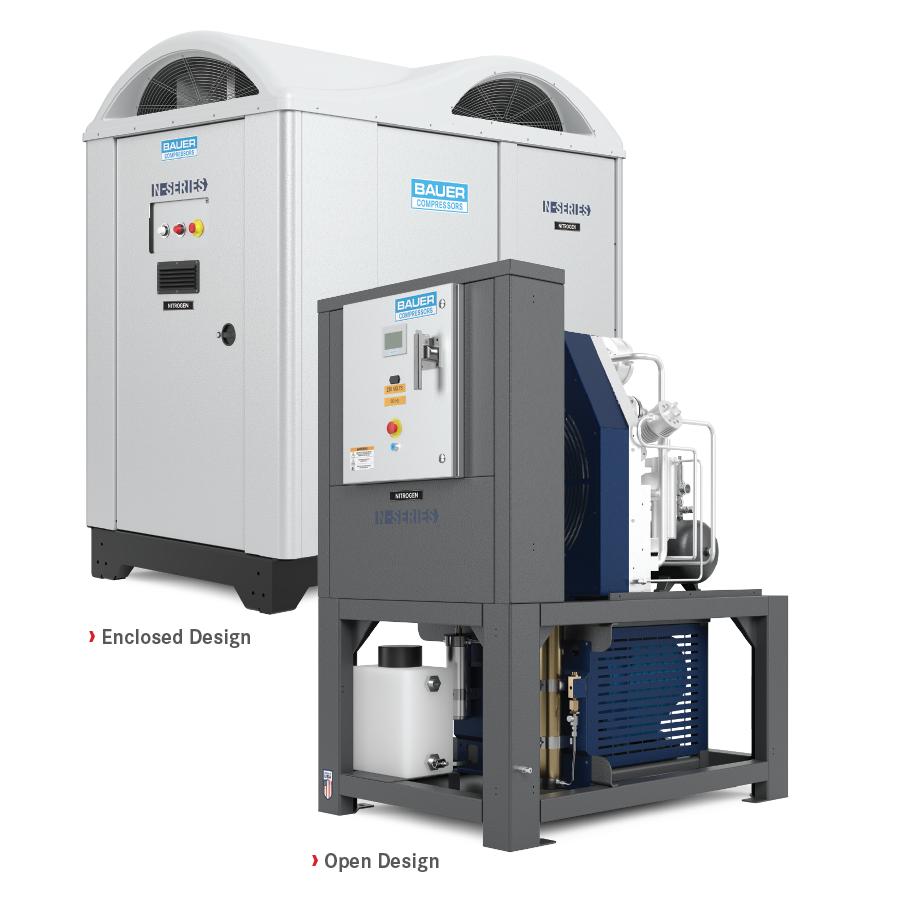

Enclosed Design
- 42” x 60” x 74” (1067mm x 1524mm x 1905mm)
Open Design
- 97” x 58” x 85” (2464mm x 1473mm x 2159mm)
WEIGHT pounds (kg) approx.
Enclosed Design
- 2300 lbs (1043 kg)
Open Design
- 3200-4000 lb (1066-1814 kg)
Technical Data
| Model | Max Inlet Pressure | Capacity FGD1 | RPM | Number of Stages | Motor | Drive | |||
| PSIG | mBAR | SCFM | M3/HR | HP | kW | ||||
| UP TO 5000 PSIG OPERATING PRESSURE (LOW INLET PRESSURE) | |||||||||
| VGI220 | <1 | 50 | 30 | 56 | 1140 | 4 | 30 | 22 | E3 |
| VGI23.1 | 1.5 | 100 | 40 | 68 | 1280 | 4 | 40 | 30 | E3 |
*1 Volume flow rate according to ISO 1217. Valid for Air and Nitrogen. Capacities for low inlet pressure models referenced to atmospheric inlet pressure. Capacities for elevated inlet pressure models referenced to min. / max. inlet pressure. Motor power valid for max. inlet and final pressure. Actual performance values may vary depending on site conditions.
