SYSTEM FOOTPRINT
Dimensions L x W x H inches (mm)

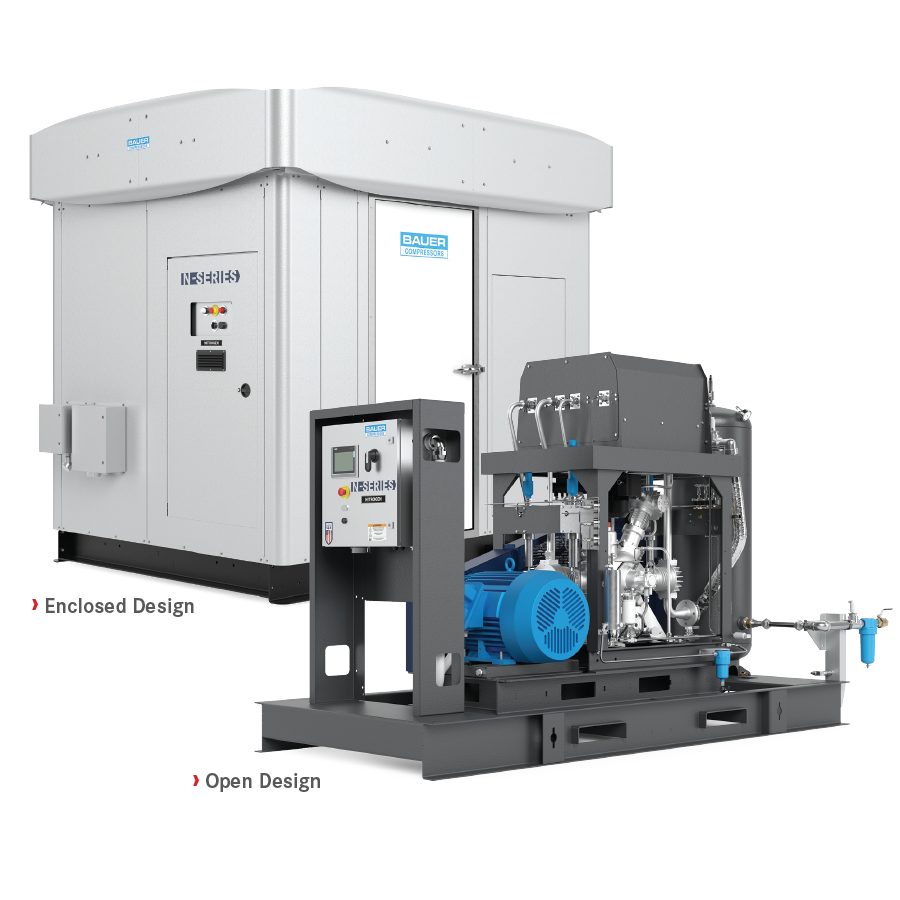

Enclosed Design
- 133” x 104” x 115” (3378 mm x 2642 mm x 2921 mm)
Open Design
- 138” x 56” x 84” (3505 mm x 1422 mm x 2134 mm)
WEIGHT pounds (kg) approx.
Enclosed Design
- 10000 lbs (4535 kg)
Open Design
- 4500 lbs (2041 kg)
Technical Data
| Model | Max Inlet Pressure | Capacity FGD1 | RPM | Number of Stages | Motor | Drive | |||
| PSIG | mBAR | SCFM | M3/HR | HP | kW | ||||
| UP TO 5000 PSIG OPERATING PRESSURE (ELEVATED INLET PRESSURE)2 | |||||||||
| GIB23.10 | 29-26 | 2-4.5 | 47-86 | 80-146 | 1140 | 4 | 50-60 | 37-45 | E3 |
| GIB23.12 | 65-145 | 4.5-10 | 60-116 | 102-198 | 1140 | 4 | 50-60 | 37-45 | E3 |
| GIB23.13 | 116-203 | 8-14 | 74-124 | 126-210 | 1140 | 4 | 50 | 37 | E3 |
‘1 Volume flow rate according to ISO 1217. Valid for Air and Nitrogen. Motor power is dependent upon inlet pressure. Contact BAUER for motor power for specific applications. Actual performance values may vary depending on site conditions. ‘2 Lower inlet pressure can result in lower operating pressure. Contact BAUER for min. / max. operating pressure relative to inlet pressure.
