SYSTEM FOOTPRINT

DIMENSIONS L X W X H inches

  • System 5: 162 x 90 x 96 (x 2 skids)
  • System 5 Booster: 138 x 57 x 83.5

WEIGHT pounds

  • 2 x PSA Skid: 9,000 (total)
  • C23 Booster Skid: 6,474
CUSTOMER SUPPORT

TECHNICAL DATA

Model Nitrogen Purity Nitrogen Flow From Booster Discharge Pressure from Booster Required Feed Air Pressure Required Feed Air Flow Booster Motor Size
    SCFM M3/HR PSIG BAR PSIG BAR SCFM M3/HR HP kW

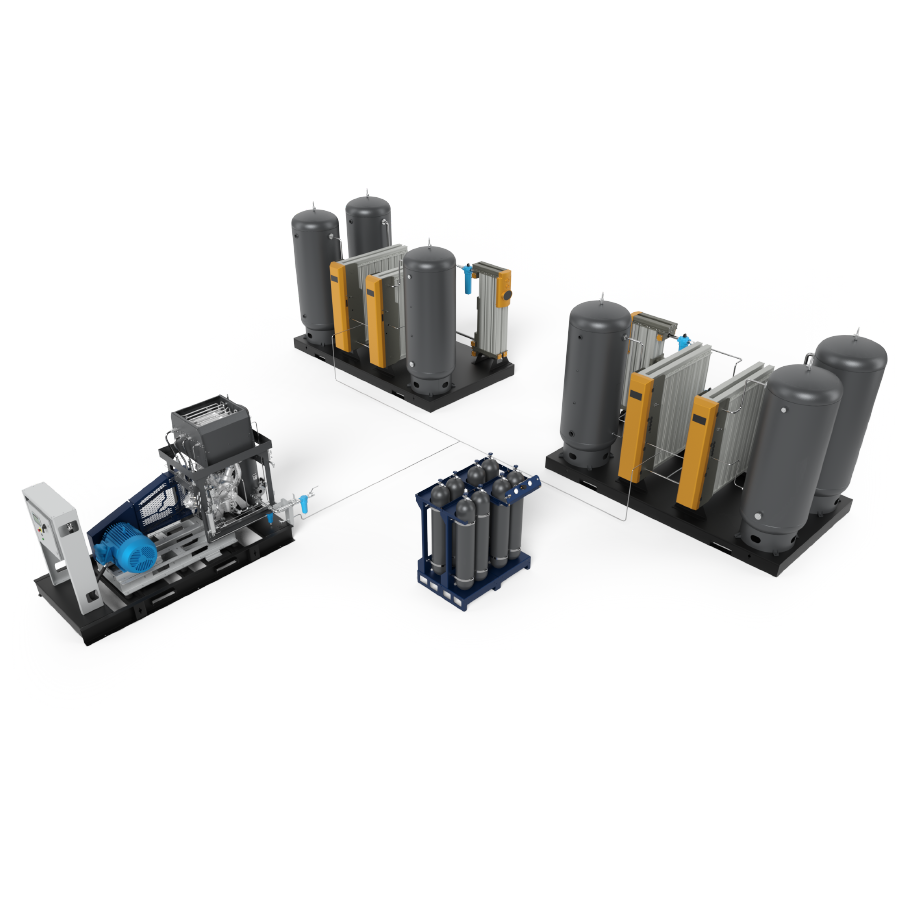

BAUER NPX™ SYSTEM 5
DUPLEX
NPX 28-200-9999		 99.99% 80.9 137.5 5000 345 189 13 694.0 1179.1 60 45
DUPLEX
NPX 28-200-99999		 99.999% 55.2 93.9 5000 345 189 13 689.0 1170.6 50 37

Systems utilize BAUER’s GIB 23.10.
Performance based on the following: Temperature: 100° F/37.8° C, Elevation: Sea Level, Relative Humidity 70%, Performance: ISO 1217
Designed to meet ISO 8573 Cl. 1.2.1 quality NitrogenParticle: < 100 P, Pressure Dew Point: ≤ -40° C, Oil: < 0.01 mg/m3
