STANDARD SCOPE OF SUPPLY

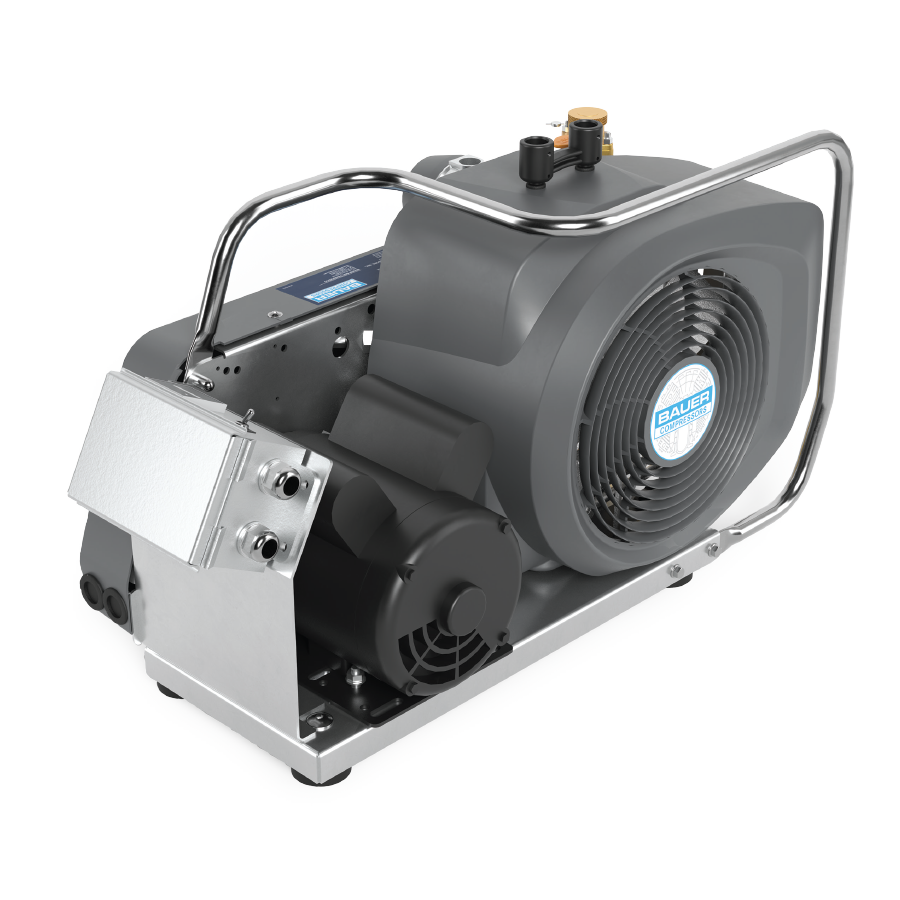

  • Air-cooled high-pressure JUNIOR compressor
  • Electric motor 1.5 HP, 110 V
  • BAUER P0 air purification system to process 3,200 CF of air per cartridge at standard inlet conditions
  • 15 amp plug
  • Final pressure setting 3700 PSIG
  • Pressure maintaining valve
  • Check valve
  • Filter vent valve
  • Air outlet ¼”
  • Lightweight, fixed base
  • Hourmeter
  • Visual CO/Moisture monitor indicator
  • Inlet filter
  • One 5 ft. fill hose complete with shut-off valve, pressure gauge, vent valve and 300 bar din adapter
  • 10 ft. electric cable with plug for 110 V 15 AMP circuit
  • Base mounted on/off switch

SYSTEM FOOTPRINT

DIMENSIONS L X W X H inches (mm)

  • 29.375 x 14 x 16.25 (746.125 x 356 x 412.75)

WEIGHT pounds (kg)

  • 100 (45)

AVAILABLE ACCESSORIES

  • P0 purification cartridge
  • Certified air test with documentation
  • Gasket kit
  • Valve overhaul kit
  • Inlet filter element
  • Fill gauge (Fill gauge with calibration option)
  • 5ft. fill hose

ACCESSORIES

Item Description National Stock Number Part Number
0002 P0 Purification cartridge NSN 4310-01-350-9101 059183A
0003 Certified air test with documentation   JRII-E1/ARMY/AT
0004 Gasket kit   N06406
0005 Valve overhaul kit NSN 4820-01-448-1600 N05457
0006 Inlet filter element NSN 4310-01-447-5922 N04823
0007 Fill gauge   GAG-0010W
0008 Fill gauge with calibration NSN 6685-01-564-1341 GAG-0010W/CAL
0009 Fill hose 5 foot   HOS-0123

TECHNICAL DATA

Model Charging Rate1 Number of Stages Motor FAD2 RPM Purification System
  scfm l/min   HP kW
3700 PSIG (255 BAR)
JRII-E1/WT 1.2 34 3 1.5 1.1 1 2100 P0

1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.

2) Compressor capacity referenced to standard inlet conditions. Dimensions and weight are approximate and are subject to change.

3) Maximum operating pressure with 1.5 HP motor and 15 amp plug is 1800 PSIG. 4) Maximum operating pressure with 20 HP motor and 20 amp plug is 5000 PSIG.

A. BAUER COMPRESSOR warranty includes parts and labor 12 Months from the date of compressor start-up or 18 Months from the date of shipment.

B. Spare parts consisting of normal wear and tear items, e.g., replacement cartridges, valve overhaul kits, gasket kits, belts, oil, inlet filter element, etc., are standard stock items at BAUER NORFOLK, BAUER SAN FRANCISCO, and BAUER NORTHEAST.
